Well-designed Ssaw Penstock Pipe - 18 inch bs carbon steel plate flange – TOP-METAL Detail:

Quick Details

Size: DN10-DN600
Material: carbon steel ,stainless steel
Standard: BS EN1092-1:2002
Place of Origin: Hebei, China (Mainland)
Model Number: PLATE FLANGE
Brand Name: TM
Standard or Nonstandard: Standard
item: 18 inch bs carbon steel plate flange
Surface: Anti-rust Oil ,yellow paint, black paint. electro-galvanized
Flange facing: RF
Technics: Forged

Packaging & Delivery

Packaging Details	18 inch bs carbon steel plate flange: In ply-woonden case or pallet.
Delivery Time	Shipped in 30 days after payment

Standard	BS EN1092-1:2002

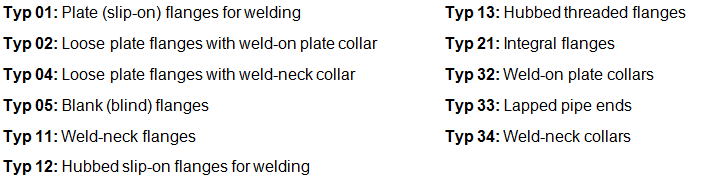

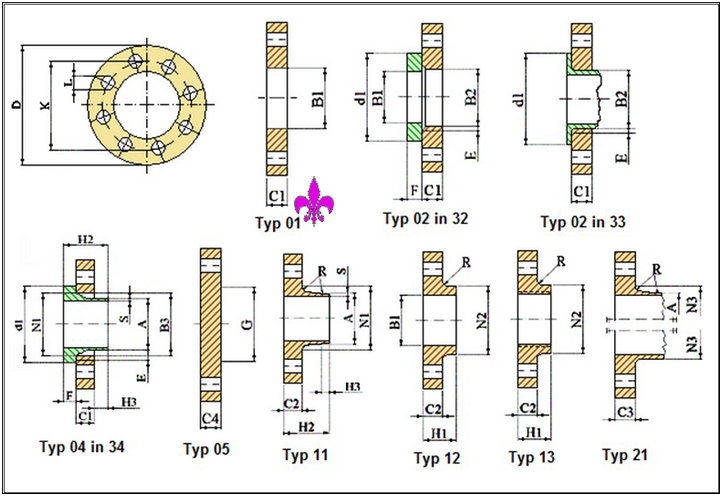

Type	TYPE 01 Plate (PL)
Pressure	PN2.5, PN6,PN10, PN16, PN25, PN40,PN63,PN100,PN160
Size	DN10 – DN600, The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.
Material	Carbon steel :A105,Rst37.2, C22.8, 20# ,Q235 Stainless steel : SS304/316/ 304L/316L
Processing	Forging
Surface	Rust-preventative oil, Black or yellow Painted, Plastic coated, Galvanized
Packing	Ply- wooden case or Pallet
