Quick Details
- Size: 1/2"-60"
- Material: Carbon Steel
- Standard: ANSI
- Place of Origin: Hebei, China (Mainland)
- Model Number: Welding Neck
- Brand Name: TM
- Standard or Nonstandard: Standard
- item: supply rtj weld neck flange rtj asme ansi b16.5
- Type: Welding neck flange(WN)
- Surface: Rust-preventative oil, Black Painted, Yellow paint.
- Pressure: 150lb,300lb,600lb,900lb,1500lb
- material: carbon steel
- standard: ANSI B16.5 ASME B16.47 SERIES A(MSS SP44)
- Processing: Forging
- Heat Treatment: Normalizing, Annealing, Quenching+Tempering
- Packing: Poly-wooden case or Pallet
- Payment: L/C ,T/T,Western Union
Packaging & Delivery
Packaging Details |
supply rtj weld neck flange rtj asme ansi b16.5: In ply-wooden case or pallet with PE film. |
Delivery Time |
Shipped in 30 days after payment |

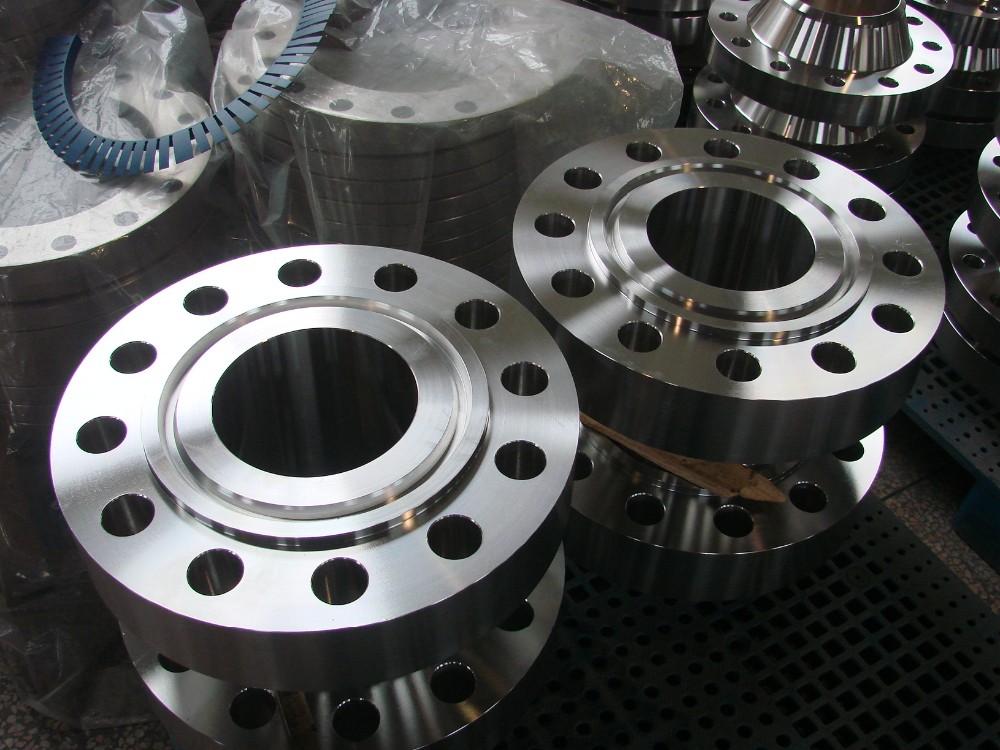

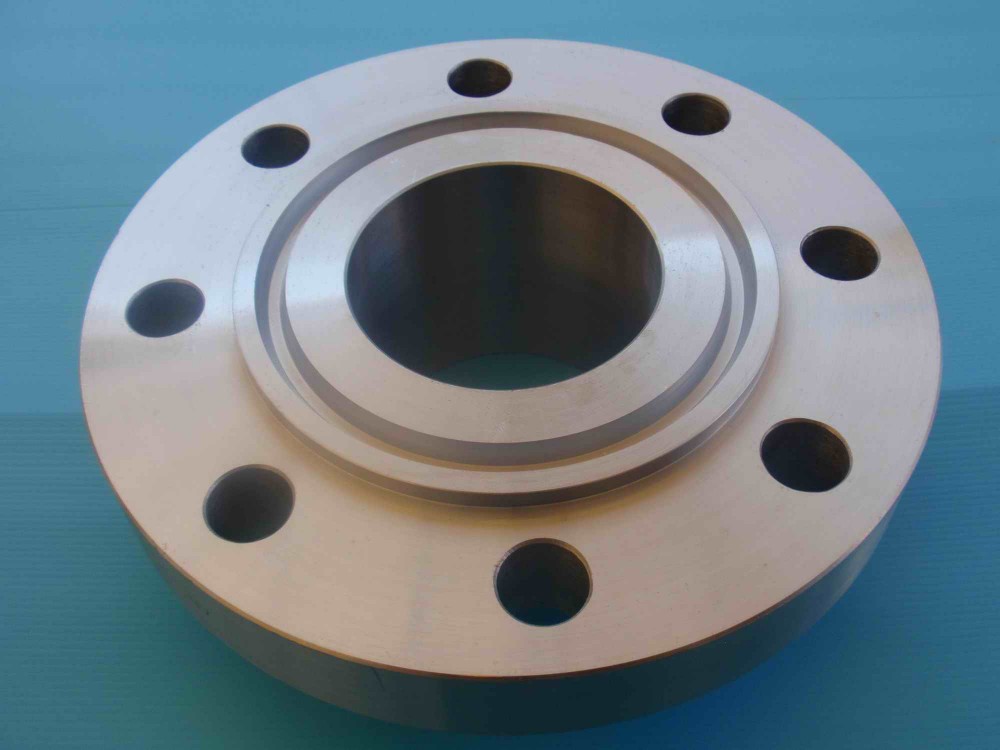

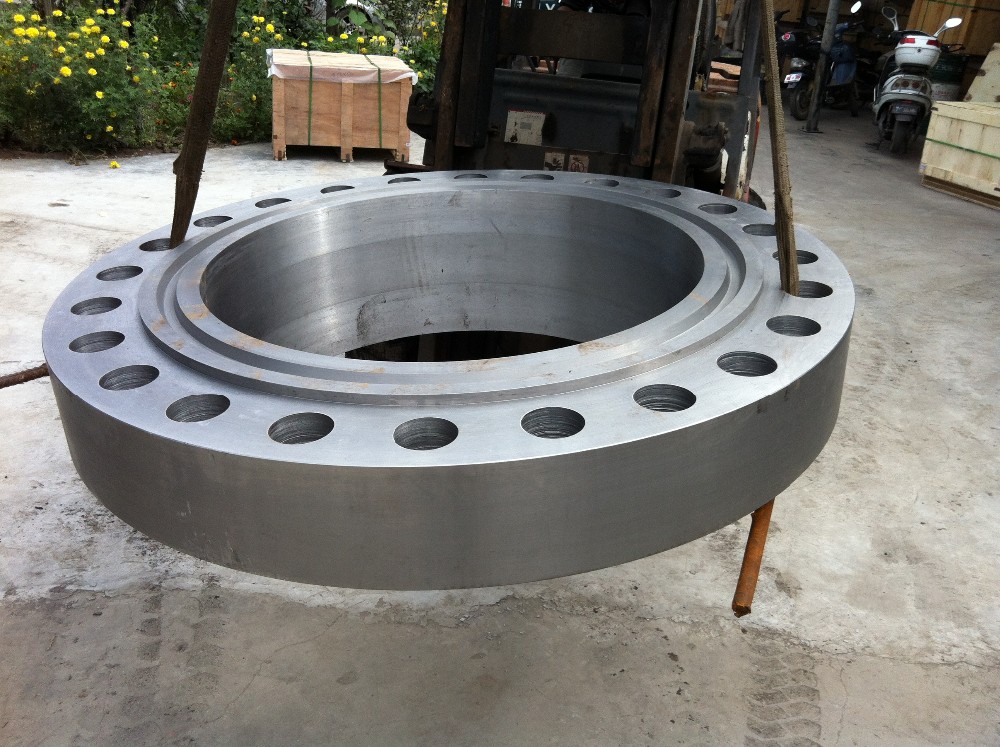

supply rtj weld neck flange rtj asme ansi b16.5


Type
|
RING TYPE JOINT (RTJ)
Welding neck, Blind with RTJ. Other type as request.
|
Standard
|
ANSI B16.5
ASME B16.47 SERIES A(MSS SP44)
ASME B16.47 SERIES B(API605)
|
Pressure
|
ANSI B16.5: Class 150, 300, 600, 900, 1200 1500 2500
ASME B16.47 SERIES A(MSS SP44): Class 150, 300, 600, 900
ASME B16.47 SERIES B(API605): Class 75, 150, 300, 600, 900
|
Size
|
ANSI B16.5 1/2”-24”
ASME B16.47 SERIES A(MSS SP44): 26”—60”
ASME B16.47 SERIES B(API605): 26”—60”
|
Material
|
Carbon steel : ASTM A105,ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20#
|
Stainless steel: ASTM A182 F304/304L F316/316L
|
Processing
|
Forging
|
Surface
|
Rust-preventative oil, Black Painted, Yellow paint.
|
