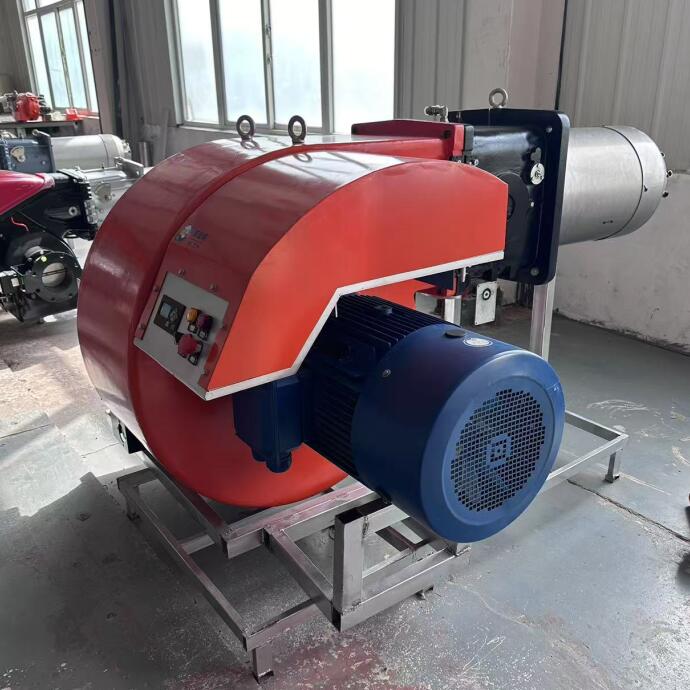

TM-FGR Ultra-Low Nitrogen Integrated Burner

TM brand own a professional manufacturer specializing in the production, installation, and after-sales service of ultra-low nitrogen burners, fully premixed low-nitrogen condensing silicon cast aluminum boilers, and steam evaporators.
The company’s key components are sourced from internationally renowned brands such as German Lamtec (control systems), Dungs and Siemens (valve groups, flame detection systems), and Danish Danfoss (ignition systems).

NOx Emissions: Consistently below 30mg/Nm³.
Compact Integrated Design, Small Size, High Power
Technical Features:
※ Proportional control operation mode.
※ Equipped with an automatic P.I.D controller for proportional control operation. (Control components are ordered separately.)
※ Control Method: Electronic proportional control / Mechanical proportional control.
※ Independent servo motor adjusts the air damper opening.
※ The air damper automatically closes during pauses to reduce heat loss in the furnace.
※ Independent servo motors control fuel, air flow, and flue gas flow separately.
※ Air pressure switch ensures the presence of combustion air.UV flame detection.
※ Control panel complies with EN298 standards.
※ Programmable controller includes built-in valve leak detection.
※ Pipeline position: Upward or downward.
※ Fan motor meets European IE3 standards.
※ Electrical protection rating: IP40.
