PTFE lined steel pipe anticorosive pipe

Short Description:

Quick Details Place of Origin: Hebei, China (Mainland) Brand Name: TOPMETAL Model Number: PTFE LINED PIPE AND FITTINGS Material: A106 Gr.B lined PTFE Specification: 60.3mm-2200mm Length: AS design Thickness: customized thickness is accpetable Standard: Standard item: PTFE lined steel pipe End: bevel with plastic cap certificates: API5L ISO 9001:2008 TUV SGS BV etc outside diameter: 1/2”–48” 20mm-1600mm Packaging & Delivery Packaging Details In Bundle and steel frame De...


  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Quick Details

    • Place of Origin: Hebei, China (Mainland)
    • Brand Name: TOPMETAL
    • Model Number: PTFE LINED PIPE AND FITTINGS
    • Material: A106 Gr.B lined PTFE
    • Specification: 60.3mm-2200mm
    • Length: AS design
    • Thickness: customized thickness is accpetable
    • Standard: Standard
    • item: PTFE lined steel pipe
    • End: bevel with plastic cap
    • certificates: API5L ISO 9001:2008 TUV SGS BV etc
    • outside diameter: 1/2”–48” 20mm-1600mm

    Packaging & Delivery

    Packaging Details In Bundle and steel frame
    Delivery Time According to orders

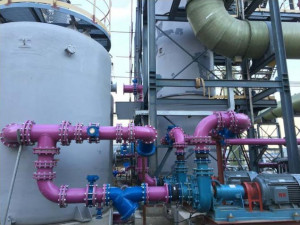

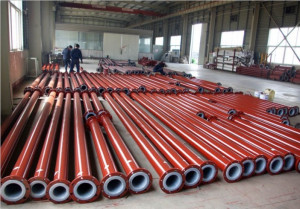

    PTFE lined steel pipe anticorosive pipe



    Pipes/Fittings:
    Material code
    A 106 Gr. B
    API 5L Gr. B
    A 234 WPB
    Flanges:
    Material code
    A 105 (C21)
    S235JRG2 (A 570 Gr. 36)
    P265 GH (A 515 Gr. 55)

    Lining:  PTFE white
    (virginal paste-extruded PTFE)
    meeting DIN 2874.
    PTFE black
    (virginal paste-extruded PTFE
    with graphite content) antistatic,
    conductive lining meeting DIN
    2874.
    Field of use
    Temperatures: -10° up to +200°C
    (-263 K up to 473 K)
    Pressure load: 10 bar (106 Pa) (150 lbs)
    Please ask us for information
    on higher pressure ratings (e.g.
    300 lbs)



    Our product range includes pipes of the following dimensions: Nominal diameters: from 1″ to 24″

    Lengths: from 100 mm up to 6100 mm (20 ft.),

    depending on the nominal diameter

    The standardized diameters and lengths of PTFE lined steel pipes are given in ASME B 16.5 stan- dard. We can supply all items listed in this standard. For larger diameters up to 120″ (DN 3000), please refer to our separate brochure entitled “Columns and Vessels”.

     0

    DN L min L max Lining wall thickness

    PTFE

    Weight fix/loose Order no.
    Economy Standard Heavy Duty Flange diam.

    Lined

    Flange
    S S S

    d4

    pipe

    mm mm mm mm mm mm

    mm

    kg/m

    kg
    1“ 100 6000 2

    51

    1“ 100 6000 3

    51

    3 2.1
    1“ 100 6000 4

    51

    1¼“ 100 6000 2

    64

    1¼“ 100 6000 3

    64

    4 2.8
    1¼“ 100 6000 4

    64

    1½“ 100 6000 2

    73

    1½“ 100 6000 3

    73

    4.9 3.3
    1½“ 100 6000 4

    73

    2“ 100 6000 2

    92

    2“ 100 6000 3

    92

    6.5 5.3
    2“ 100 6000 4

    92

    2½“ 100 6000 2.5

    105

    2½“ 100 6000 3.5

    105

    10 7.8
    2½“ 100 6000 4

    105

    3“ 110 6000 2.5

    127

    3“ 110 6000 3.5

    127

    13 9.3
    3“ 110 6000 4

    127

    4“ 110 6000 3

    157

    4“ 110 6000 4.5

    157

    19 14
    4“ 110 6000 5

    157

    5“ 110 6000 3.5

    186

    5“ 110 6000 4.5

    186

    25 17
    5“ 110 6000 5

    186

    6“ 120 6000 4.5

    216

    6“ 120 6000 5

    216

    33 21
    6“ 120 6000 6

    216

    8“ 130 6000 4.5

    270

    8“ 130 6000 5

    270

    49 34
    8“ 130 6000 8

    270

    10“ 130 6000 5

    324

    68 47
    10“ 130 6000 8

    324



    DN L min L max Lining wall thickness PTFE Weight Order no. PTFE
    Economy Standard Heavy Duty Flange diam. Lined Flange
    S S S d4 pipe
    mm mm mm mm mm mm mm kg/m kg
    12“ 150 4000 5.5 381 86 71
    12“ 150 4000 8 381
    14“ 150 3500 5.5 413 94 92
    14“ 150 2500 8 413
    16“ 200 2500 5.5 470 109 113
    16“ 200 2500 8 470
    18“ 200 2000 5.5 533 121 128
    18“ 200 2000 8 533
    20“ 250 2000 6 584 136 159
    20“ 250 2000 8 584
    24“ 250 1800 6 692 165 218
    24“ 250 1600 8 692



    * Please indicate length with order

    Subject to technical changes
