Product Description
PTFE Lined Elbow with Flange
PTFE lined 90deg elbow with fixed flange or losse flange
PTFE lined pipe is highly corrosion resistant. It’s used to convey the most corrosive and toxic chemicals in manufacturing plants, for the chemical, pharmaceutical and associated processing industries.

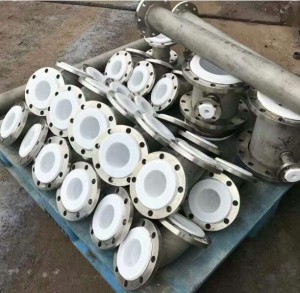

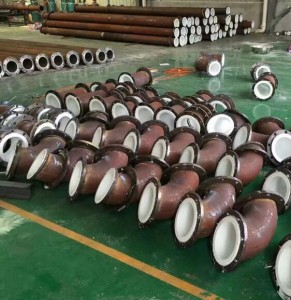

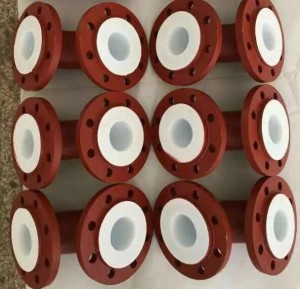

PTFE lined elbow
Nominal Diameter(mm/in):DN25~DN300(1~12inch)
Operation temperature:-20°C~180°C
Operation pressure:-0.09MPa~1.6MPa (-0.9bar~16bar)
steel Pipe: Seamless steel
Liner: PTFE
Flange: ASME B16.5 Class 150/300;
Flange options: HG,GB,JB,JIS,BS,DIN, Loose flange available
| Nomal size | F | A | t | G.W.(kg) | |
| inch | mm | ||||
| 1/2″ | 15 | 32 | 80 | 6 | 1.8 |
| 3/4″ | 20 | 40 | 85 | 6 | 2.4 |
| 1″ | 25 | 48 | 90 | 6 | 3.6 |
| 1-1/2″ | 40 | 68 | 115 | 6 | 4.6 |
| 2″ | 50 | 87 | 120 | 6 | 7.6 |
| 2-1/2″ | 65 | 100 | 130 | 6 | 10.5 |
| 3″ | 80 | 117 | 140 | 7 | 12.6 |
| 4″ | 100 | 151 | 150 | 8 | 16.8 |
| 5″ | 125 | 175 | 190 | 8 | 23.0 |
| 6″ | 150 | 203 | 230 | 8 | 28.0 |
| 8″ | 200 | 256 | 250 | 8 | 46.0 |
| 10″ | 250 | 311 | 250 | 9 | 69.0 |
| 12″ | 300 | 365 | 280 | 10 | 108.0 |
