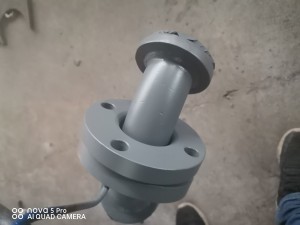

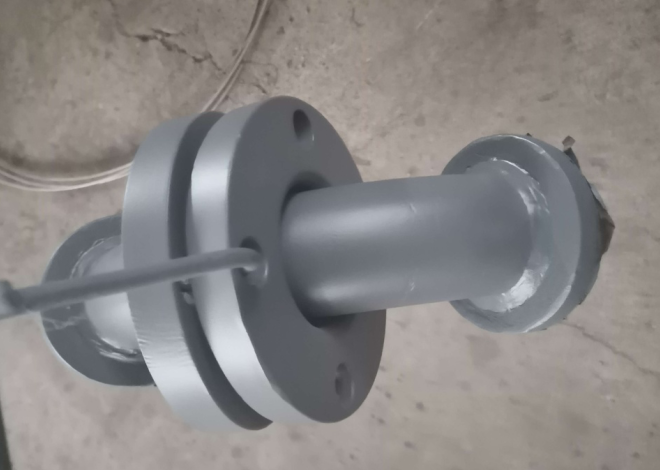

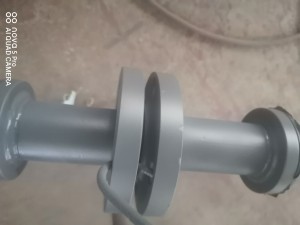

PTFE Lined Elbow 90 Degree

Short Description:

   PTFE Lined Elbow  90 degree Technical Specification Design and Manufacture Standard: ASTMF 1545, HG/T 21562 Flange Standard: ASME B 16.5 ,HG/T 20592,DIN,JIS Inspection & Testing :ASTM F 1545 Product Specification Body Material: A105 , SS304 , SS316 , SS316L Lining Material: PTFE ,PFA ,PO Nominal Diameter: 1″~24″(DN25~DN600) Pressure Range: Class 150 , PN10 ,PN16 Product description: 1.Topmatel manufactures lined pipe and fittings by use compression molding, isostatic moldin...


  • Payment Terms: L/C,D/A,D/P,T/T
  • :
  • :
  • :
  • Product Detail

    Product Tags

       PTFE Lined Elbow  90 degree
    Technical Specification
    Design and Manufacture Standard:
    ASTMF 1545, HG/T 21562
    Flange Standard: ASME B 16.5 ,HG/T 20592,DIN,JIS
    Inspection & Testing :ASTM F 1545

    Product Specification
    Body Material:
    A105 , SS304 , SS316 , SS316L
    Lining Material: PTFE ,PFA ,PO
    Nominal Diameter: 1″~24″(DN25~DN600)
    Pressure Range: Class 150 , PN10 ,PN16

    Product description:

    1.Topmatel manufactures lined pipe and fittings by use compression molding, isostatic molding, injection molding, transfer molding, hot rotomolding, ram/paste extrusion, 3D rotational molding etc. Characters as below:

    2.Working temperature is high at the range of -29oC-200oC; except the molten alkali metals, element fluorine and aromatic hydrocarbon, lined products can be used in any chemical medium.



    3.Vacuum resistance. In the range of -29oC-150oC, it is applicable for vacuum condition. In chemical production, the vacuum condition occurs due to cooling, longitudinal emissions, or medium backflow.

    4.High-pressure resistance. Within temperature working condition, it can sustain the working pressure of 3.0MPa.

    5.Resistance to penetration.  Adapt the high-quality PTFE, to make it of high density and enough thickness after advanced lining processing, make it excellent anti-osmosis.

    6.PTFE advanced lining molding process achieved the status of synchronous hot expansion or cold shrinkage for steel components and fluorine plastic.

    7.Topmatel adopts the standard size according to HG, GB, DIN, ANSI, and JIS etc., which improves interchangeability, to provide convenience for installation.

    8.Specific gravity: 2.14-2.19g/cm3 as per ASTM D 792 test standard.

    9.Tensile rate: 20.7Mpa minimum as per ASTM D 638 test standard

    10.Elongation rate: 250% minimum as per ASTM D 638 test standard.

    11.Manufacture standard: ASTM D 4895. Operating in vacuum condition within 150oC.
