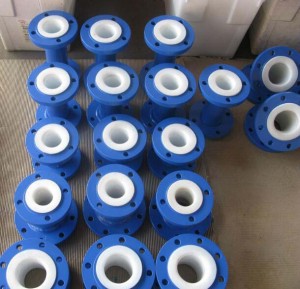

PTFE Lined Concentric Reducer

Short Description:

PTFE Lined Concentric Reducer Steel frame: ASTM A234 grade WPB, in compliance with ANSI B16.28 Steel reducer: according to SCH 40. Flange: ASTM A105, in compliance with ANSI B16.5/ class 150lbs; JIS 10k or also available on request. Standard: two fixed flanges; two loose flanges or one loose and one fixed flanges are on request. Lining: Pure PTFE in compliance with F1545. Other nominal sizes are available on request. Nominal size D1 D2 A t t’ Inch mm 1-½”x1″ 40×25...

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

PTFE Lined Concentric Reducer

Steel frame: ASTM A234 grade WPB, in compliance with ANSI B16.28
Steel reducer: according to SCH 40.
Flange: ASTM A105, in compliance with ANSI B16.5/ class 150lbs; JIS 10k or also available on request.
Standard: two fixed flanges; two loose flanges or one loose and one fixed flanges are on request.
Lining: Pure PTFE in compliance with F1545. Other nominal sizes are available on request.

Nominal size		D1	D2	A	t	t’
Inch	mm	D1	D2	A	t	t’
1-½”x1″	40×25	73	51	114	3	3
2″x1″	50×25	92	51	127	3	3
2″x1-½”	50×40	92	73	127	3	3
2-½”x1″	65×25	105	51	140	3	3
2-½”x1-½”	65×40	105	73	140	3	3
2-½”x2″	65×50	105	92	140	3	3
3″x1″	80×25	127	51	152	3	3
3″x1-½”	80×40	127	73	152	3	3
3″x2″	80×50	127	92	152	3	3
3″x2-½”	80×65	127	105	152	3	3
4″x1-½”	100×40	155	73	178	3	3
4″x2″	100×50	155	92	178	3	3
4″x3″	100×80	155	127	178	3	3
6″x2″	150×50	212	92	229	4	3
6″x3″	150×80	212	127	229	4	3
6″x4″	150×100	212	155	229	4	3
8″x4″	200×100	270	155	279	4	3
8″x6″	200×150	270	212	279	4	4
10″x4″	250×100	323	155	305	5	3
10″x6″	250×150	323	212	305	5	4
10″x8″	250×200	323	270	305	5	4
12″x6″	300×150	381	212	356	5	4
12″x8″	300×200	381	270	356	5	4
12″x10′	300×250	381	323	356	5	5

PTFE Lined 90° Elbow

Steel frame : ASTM A234 grade WPB, in compliance with ANSI B16.28
Steel bend: according to SCH 40.
Flange: ASTM A105, in compliance with ANSI B16.5/class 150lbs; JIS 10k or DIN is also available on request.
Standard: two fixed flanges; two loose flanges or one loose and one fixed flanges are on request.
Elaborazione di testi in laboratorio
Lining : Pure PTFE in compliance with ASTM F1545, under 4″ PFA lined 90° elbow is on request. Other nominal sizes are available on request.

PTFE Lined Concentric Reducer

			d		D
Nominal Pipe size		A	ANSI 150LBS	t	ANSI 150LBS
1	-25	89	19	3	51
1½	-40	102	34	3	73
2	-50	114	46	3	92
2½	-65	127	59	3	105
3	-80	140	74	3	127
4	-100	165	94	3	155
6	-150	203	140	5	212
8	-200	228	190	5	270
10	(x250)	280	238	6	323
12	(x300)	305	288	6	381
