Original Factory High Quality Lined Pipe Fitting Tape - stainless steel raised face long weld neck pipe flange – TOP-METAL Detail:

Quick Details

Size: 1/2"-60"
Material: Stainless Steel
Standard: ANSI
Place of Origin: Hebei, China (Mainland)
Model Number: Welding Neck
Brand Name: TM
Standard or Nonstandard: Standard
item: stainless steel raised face long weld neck pipe flange
Type: Welding neck flange(WN)
Surface: Natual and brightness
Pressure: 150lb,300lb,600lb,900lb,1500lb
material: stainless steel
standard: ANSI
Processing: Forging
Heat Treatment: Normalizing, Annealing, Quenching+Tempering
Packing: Poly-wooden case or Pallet
Payment: L/C ,T/T,Western Union

Packaging & Delivery

Packaging Details	stainless steel raised face long weld neck pipe flange: In ply-wooden case or pallet with PE film.

stainless steel raised face long weld neck pipe flange

Product Description

Type	Welding Neck (WN)
Standard	ANSI B16.5 ASME B16.47 SERIES A(MSS SP44) ASME B16.47 SERIES B(API605)
Pressure	ANSI B16.5: Class 150, 300, 600, 900, 1200 1500 2500 ASME B16.47 SERIES A(MSS SP44): Class 150, 300, 600, 900 ASME B16.47 SERIES B(API605): Class 75, 150, 300, 600, 900
Wall thickness	STD, SCH40, XS,SCH80,SCH120,SCH160,XXS
Size	ANSI B16.5 1/2”-24” ASME B16.47 SERIES A(MSS SP44): 26”—60” ASME B16.47 SERIES B(API605): 26”—60”
Material	Carbon steel : ASTM A105,ASTM 694 F52, ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20#
Material	Stainless steel: ASTM A182 F304/304L F316/316L
Processing	Forging
Surface	Rust-preventative oil, Black Painted, Yellow paint.

Prouduct Pictures

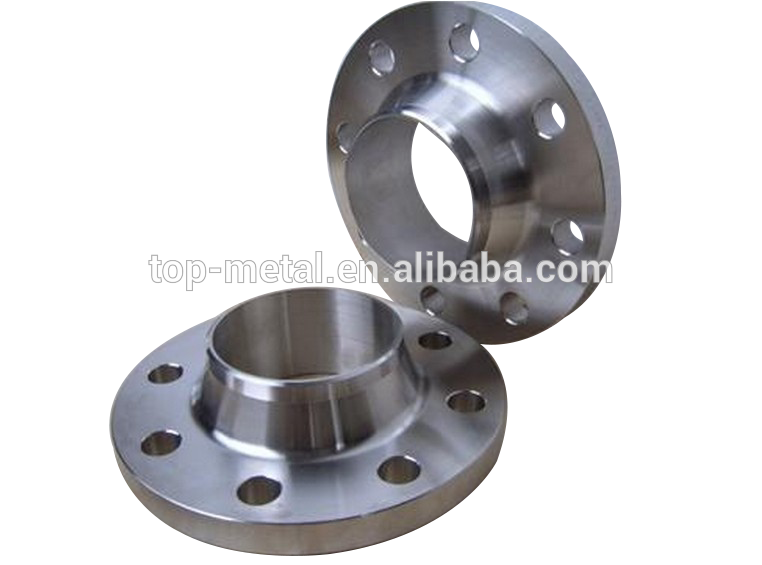

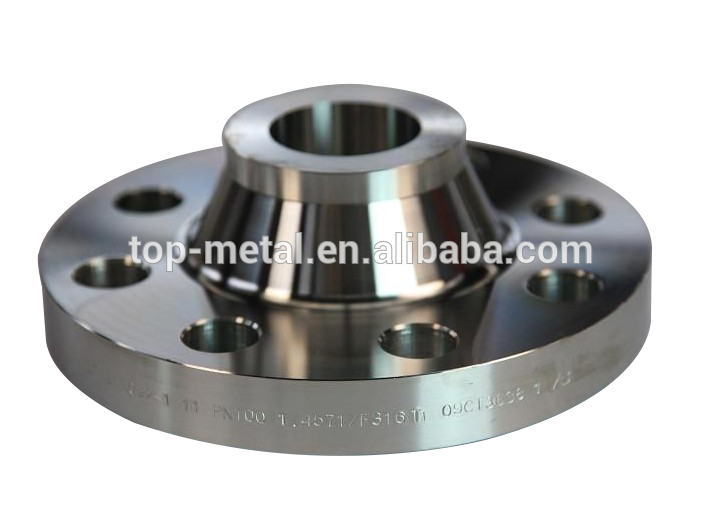

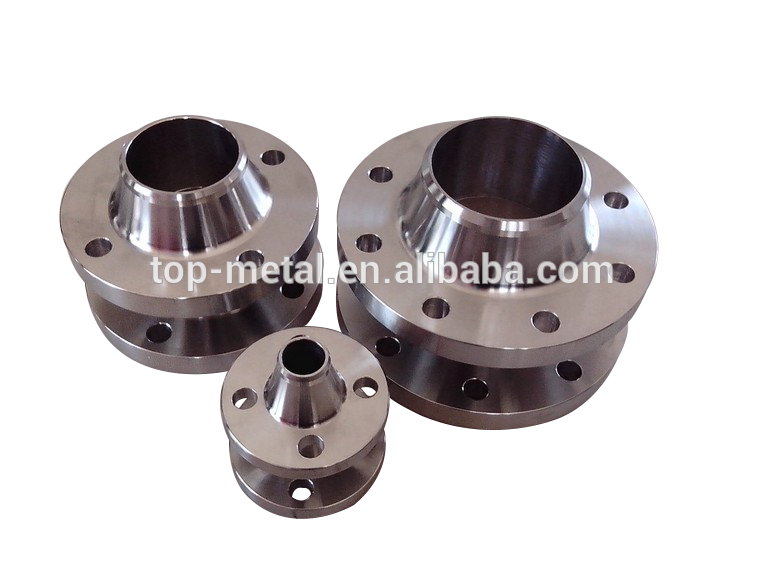

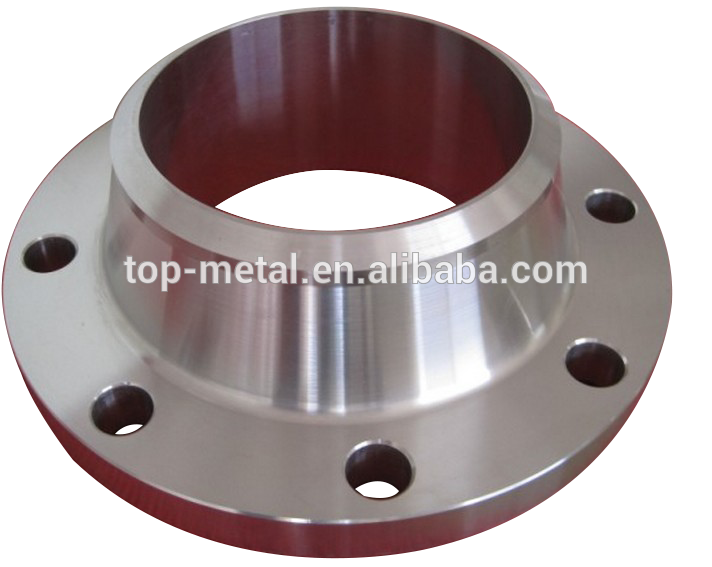

Product detail pictures:

Original Factory High Quality Lined Pipe Fitting Tape - stainless steel raised face long weld neck pipe flange – TOP-METAL, The product will supply to all over the world, such as: , , ,
