OEM/ODM Factory Api 5l Gas Pipe Line Welded Steel Pipe - long using life large diameter hdpe dredge pipe – TOP-METAL Detail:

Quick Details

Place of Origin: Hebei, China (Mainland)
Brand Name: TOPMETAL
Model Number: HDPE Pipe
Material: PE80 PE100 PE4710
Specification: 20mm-1600mm
Length: 5.8m or 11.8m, 3-18m
Thickness: SDR11-SDR26 , customized thickness is accpetable
Standard: Standard
item: long using life large diameter hdpe dredge pipe
End: bevel with plastic cap
certificates: API5L ISO 9001:2008 TUV SGS BV etc
outside diameter: 1/2''–48'' 20mm-1600mm

Packaging & Delivery

Packaging Details	In Bundle or in bulk.
Delivery Time	30 days

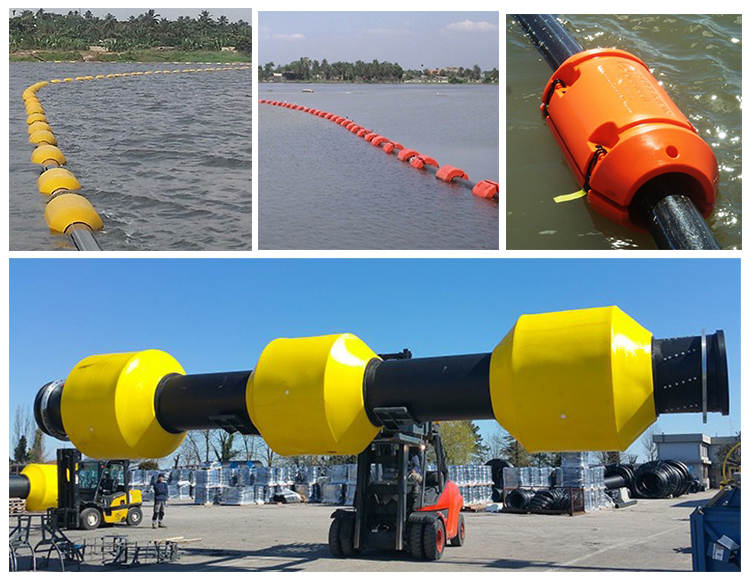

long using life large diameter hdpe dredge pipe

Material : PE80, PE100 PE4710
Length : 5.8 m,11.8m or on customer requirement

Sizes: 20mm to 1600 mm
Pressure Rating: PN 0.6Mpa ,PN 0.8Mpa ,PN 1.0Mpa,PN 1.25Mpa, PN1.6Mpa
Colors: black other colors on request
Connection: socket fusion joint, heat fusion joint or transition joint
Standard: ISO9001:2008 ISO14001:2004

Nominal Diameter(mm)	SDR26	SDR21	SDR17	SDR13.6	SDR11
	PN6	PN8	PN10	PN12.5	PN16
	Thickness	Thickness	Thickness	Thickness	Thickness
20	2	2	2	2	2
25	2	2	2.3	2.3	2.3
32	2	2.3	2.3	2.3	3
40	2.3	2.3	2.5	3	3.7
50	2.3	2.5	3	3.7	4.6
63	2.9	3	3.7	4.7	5.8
75	3	3.7	4.5	5.6	6.8
90	3.7	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10
125	4.8	6	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2	64.5
800	30.6	38.1	47.4	58.8	72.6
900	34.4	42.9	53.3	66.2	81.7
1000	38.2	47.7	59.3	72.5	90.2
1200	45.9	57.2	67.9	88.2	-
1400	53.5	66.7	82.4	102.9	-
1600	61.2	76.2	94.1	117.6	-

Physical Properties

Properties	Typical Value
Specific Gravity, g/cm3(20°C)	0.941~0.965
Longitudinal Reversion, %(110°C)	≤3
Oxidation Induction Time, min(200°C)	≥20
Extension Rate at Break,%	≥350
Hydraulic Pressure Test (PE100) qualified	20°C
	80°C,165h, Hoop Stress is 5.5MPa
	80°C,1000h,Hoop Stress is 5.0MPa

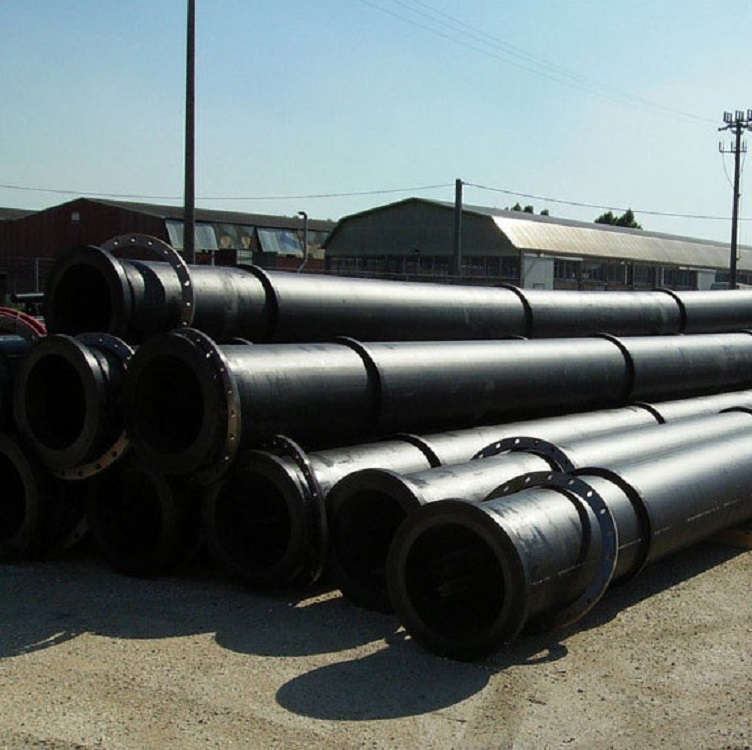

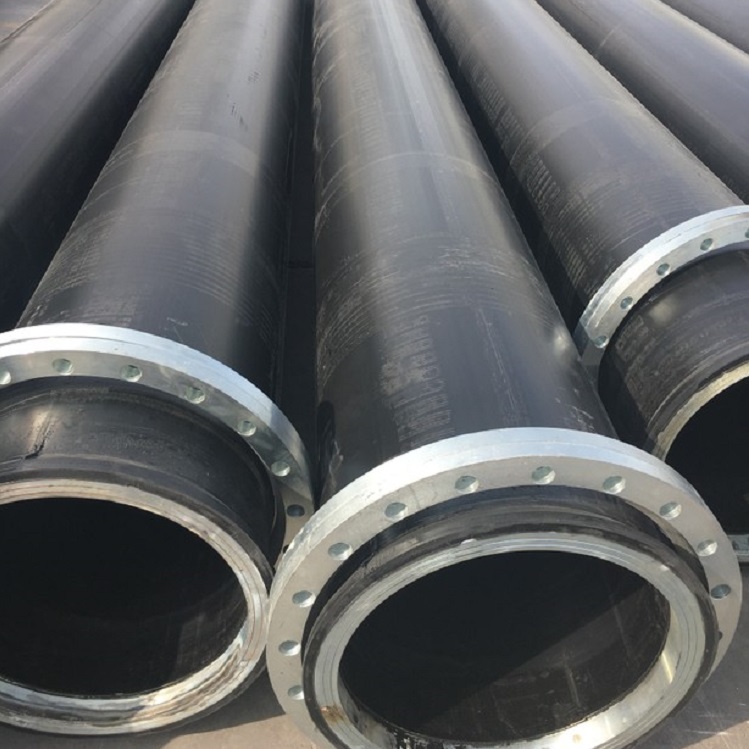

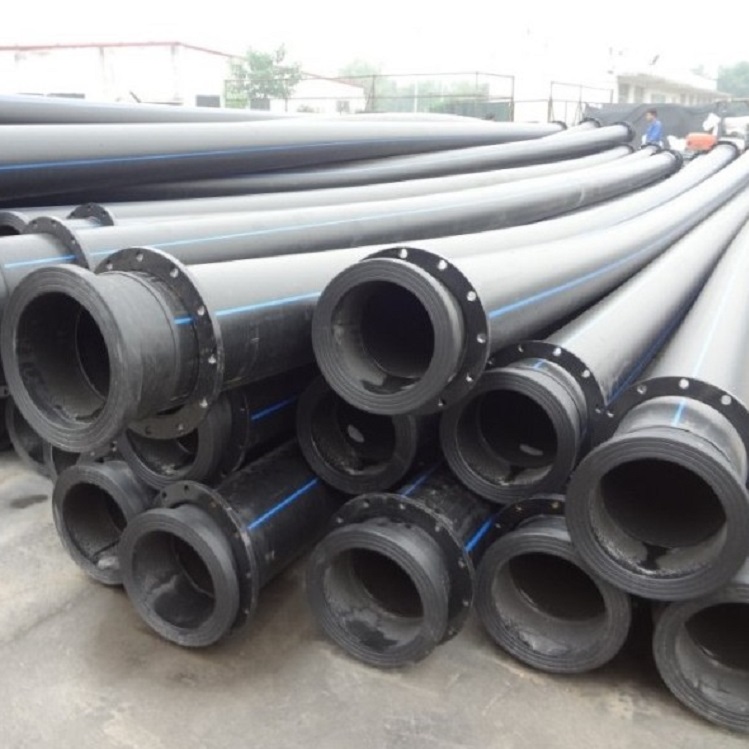

Product detail pictures:

OEM/ODM Factory Api 5l Gas Pipe Line Welded Steel Pipe - long using life large diameter hdpe dredge pipe – TOP-METAL, The product will supply to all over the world, such as: , , ,
