Quick Details
- Place of Origin: Hebei, China (Mainland)
- Brand Name: TOPMETAL
- Model Number: HDPE Pipe
- Material: PE80 PE100 PE4710
- Specification: 20mm-1600mm
- Length: 5.8m or 11.8m, 3-18m
- Thickness: SDR11-SDR26 , customized thickness is accpetable
- Standard: Standard
- item: dredge pipe
- End: bevel with plastic cap
- certificates: API5L ISO 9001:2008 TUV SGS BV etc
- outside diameter: 1/2''–48'' 20mm-1600mm
Packaging & Delivery
| Packaging Details | In Bundle or in bulk. |
|---|---|
| Delivery Time | 30 days |

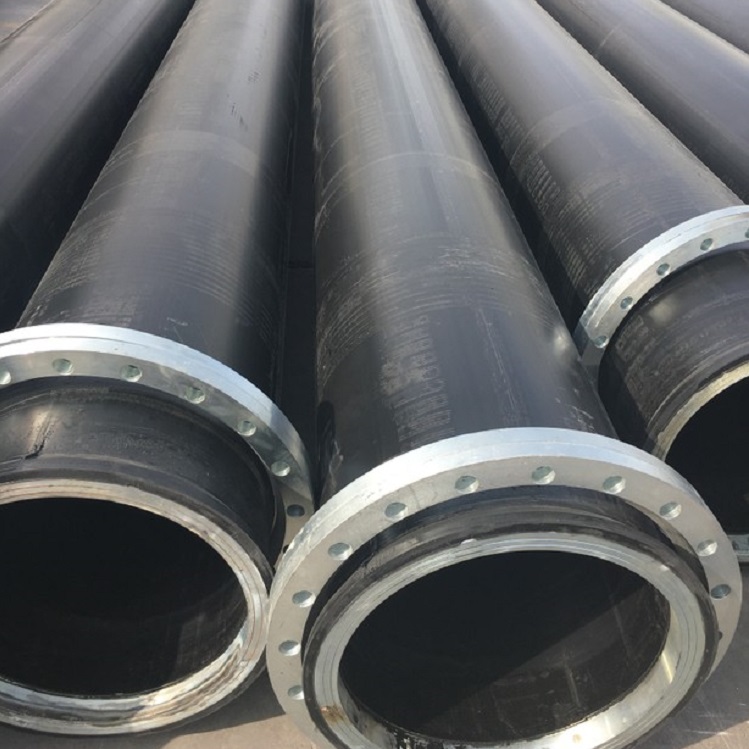

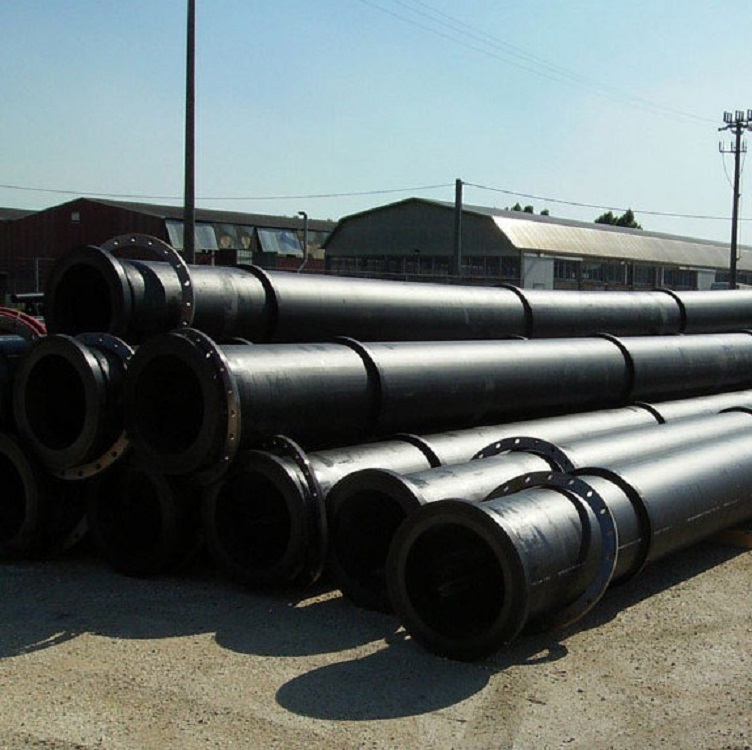

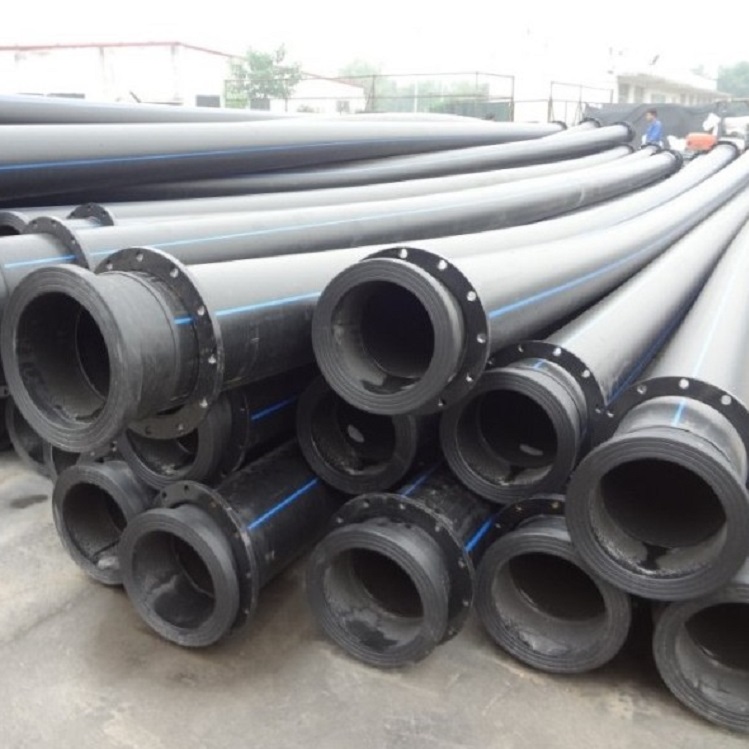

dredge pipe
Material : PE80, PE100 PE4710
Length : 5.8 m,11.8m or on customer requirement
Sizes: 20mm to 1600 mm
Pressure Rating: PN 0.6Mpa ,PN 0.8Mpa ,PN 1.0Mpa,PN 1.25Mpa, PN1.6Mpa
Colors: black other colors on request
Connection: socket fusion joint, heat fusion joint or transition joint
Standard: ISO9001:2008 ISO14001:2004
|
Nominal Diameter(mm) |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|
PN6 |
PN8 |
PN10 |
PN12.5 |
PN16 |
|
|
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
|
|
20 |
2 |
2 |
2 |
2 |
2 |
|
25 |
2 |
2 |
2.3 |
2.3 |
2.3 |
|
32 |
2 |
2.3 |
2.3 |
2.3 |
3 |
|
40 |
2.3 |
2.3 |
2.5 |
3 |
3.7 |
|
50 |
2.3 |
2.5 |
3 |
3.7 |
4.6 |
|
63 |
2.9 |
3 |
3.7 |
4.7 |
5.8 |
|
75 |
3 |
3.7 |
4.5 |
5.6 |
6.8 |
|
90 |
3.7 |
4.3 |
5.4 |
6.7 |
8.2 |
|
110 |
4.2 |
5.3 |
6.6 |
8.1 |
10 |
|
125 |
4.8 |
6 |
7.4 |
9.2 |
11.4 |
|
140 |
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
|
160 |
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
|
180 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
|
200 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
|
225 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
|
250 |
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
|
280 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
|
315 |
12.1 |
15 |
18.7 |
23.2 |
28.6 |
|
355 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
|
400 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
|
450 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
|
500 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
|
560 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
|
630 |
24.1 |
30 |
37.4 |
46.3 |
57.2 |
|
710 |
27.2 |
33.9 |
42.1 |
52.2 |
64.5 |
|
800 |
30.6 |
38.1 |
47.4 |
58.8 |
72.6 |
|
900 |
34.4 |
42.9 |
53.3 |
66.2 |
81.7 |
|
1000 |
38.2 |
47.7 |
59.3 |
72.5 |
90.2 |
|
1200 |
45.9 |
57.2 |
67.9 |
88.2 |
- |
|
1400 |
53.5 |
66.7 |
82.4 |
102.9 |
- |
|
1600 |
61.2 |
76.2 |
94.1 |
117.6 |
- |
Physical Properties
|
Properties |
Typical Value |
|
Specific Gravity, g/cm3(20°C) |
0.941~0.965 |
|
Longitudinal Reversion, %(110°C) |
≤3 |
|
Oxidation Induction Time, min(200°C) |
≥20 |
|
Extension Rate at Break,% |
≥350 |
|
Hydraulic Pressure Test (PE100) qualified |
20°C |
|
80°C,165h, Hoop Stress is 5.5MPa |
|
|
80°C,1000h,Hoop Stress is 5.0MPa |
