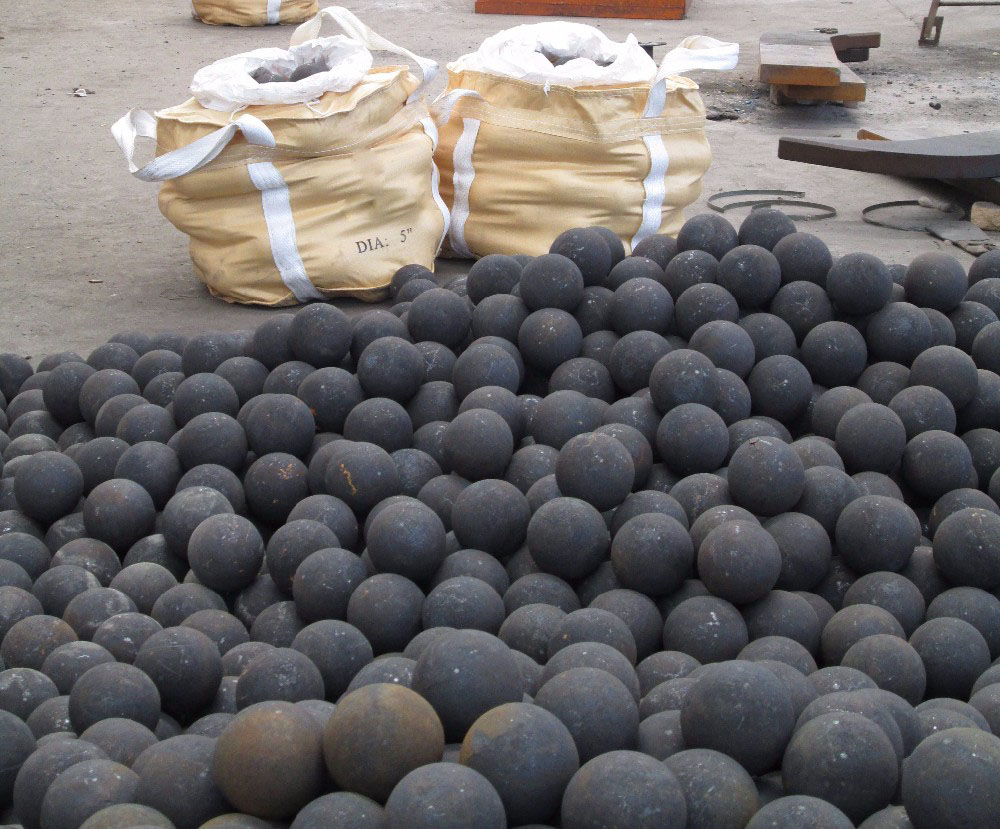

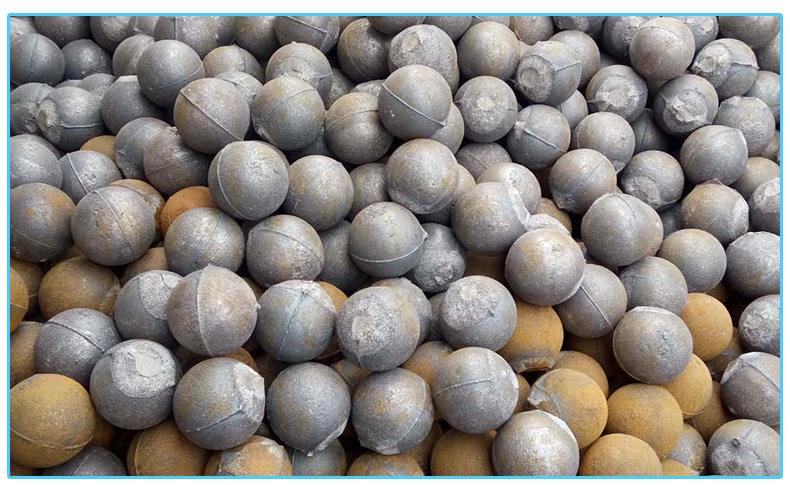

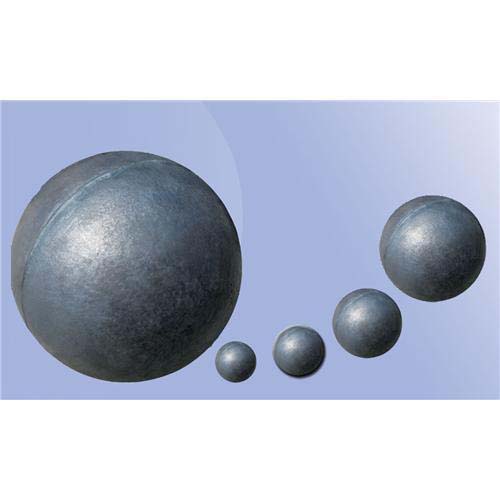

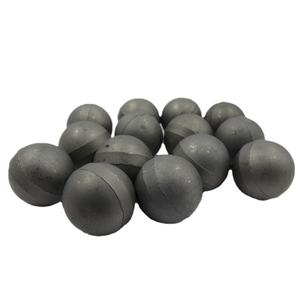

Description:
1. Grade: 45#, 60Mn,65Mn, B2, B3, B62. Size: DIA 20MM-150MM3. Hardness: HRC 50-654. Certification:ISO9001, SGS, etc5. Chemical composition:
Name | C | Mn | Si | S | P | Cr |
01-45# | 0.42-0.48 | 0.50-0.80 | 0.17-0.37 | 0.05max | 0.05max | 0.15max |
02-50MN | 0.48-0.56 | 0.65-1.00 | 0.17-0.37 | 0.05max | 0.05max | 0.15max |
03-60MN | 0.57-0.65 | 0.70-1.10 | 0.17-0.37 | 0.05max | 0.05max | 0.25max |
04-65MN | 0.62-0.75 | 0.90-1.20 | 0.17-0.37 | 0.05max | 0.05max | 0.25max |
05-B2 | 0.75-0.85 | 0.70-0.90 | 0.17-0.35 | 0.05max | 0.05max | 0.40-0.60 |
06-B3 | 0.50-0.65 | 0.40-1.00 | 1.35-1.85 | 0.05max | 0.05max | 0.80-1.20 |
07-BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.05max | 0.05max | 0.70-1.20 |
08-BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 0.05max | 0.05max | 1.0-1.70 |
