High Quality PTFE Lined Pipe

Short Description:

High Quality PTFE Lined Pipe Pipe spools of sizes up to DN-300 and a maximum length of 3000mm. These spools are seamless pipe sections to which the plastic liner is thermally locked from inside & flared at ends conforming to ASTM A 106 sch-40 conforming to ASTM F 1545 suitably provided with vent holes to prevent liner failure against different temperature and pressure and permeation conditions. These lined spool pipes can be supplied with lose or fixed flange design to any drilling specif...

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

High Quality PTFE Lined Pipe

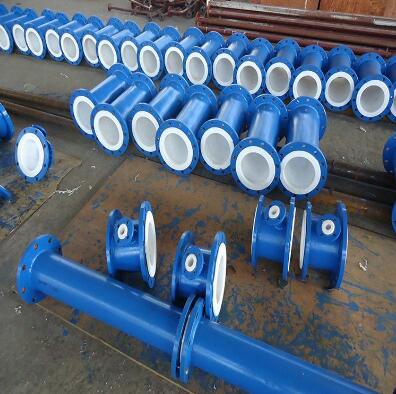

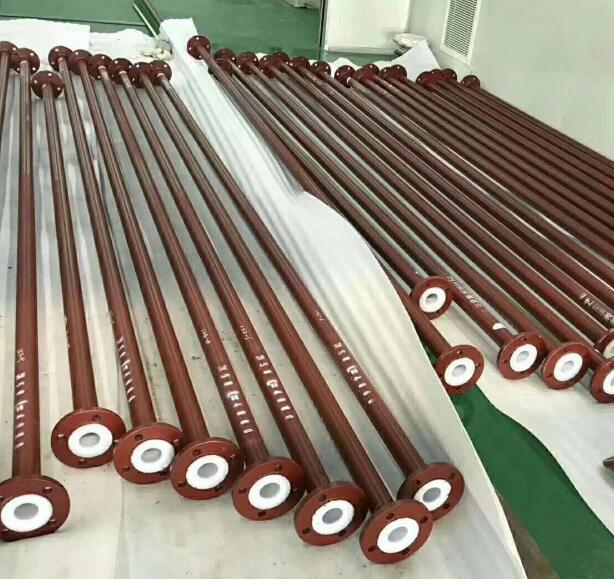

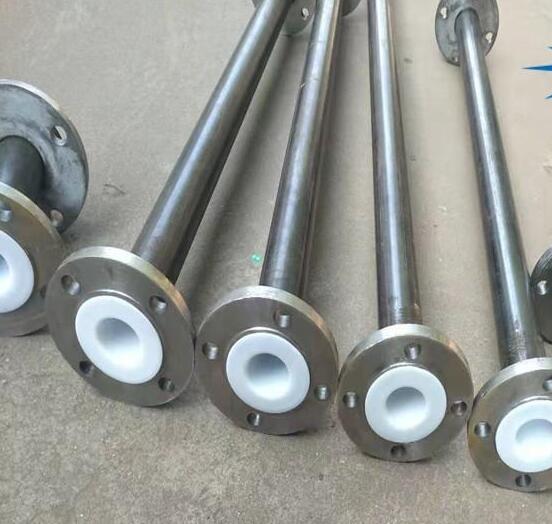

Pipe spools of sizes up to DN-300 and a maximum length of 3000mm. These spools are seamless pipe sections to which the plastic liner is thermally locked from inside & flared at ends conforming to ASTM A 106 sch-40 conforming to ASTM F 1545 suitably provided with vent holes to prevent liner failure against different temperature and pressure and permeation conditions. These lined spool pipes can be supplied with lose or fixed flange design to any drilling specification upto DN – 300 sizes. As a solution to customer’s applications Jacketed Lined Pipes can also be made available.

NOMINAL BORE NB		INTERNAL DIA (D)	PTFE LINER THICKNESS (T)	FLANGE PCD	FLANGEHOLE DIA	RAISED FACE DIA(R/F)	MAXI. LENGTH	PIPE SCHEDULE
(MM)	(INCHES)	(+1 MM)	(MM)	(MM)	(MM)	(MM)	(MM)	PIPE SCHEDULE
25	1	19.5	3.3	79.4	15.9	51	3000	40
40	1.5	33.8	3.3	98.4	15.9	73	3000	40
50	2	45.4	3.3	120.6	19.0	92	3000	40
80	3	70.8	3.3	152.4	19.0	127	3000	40
100	4	95.2	3.8	190.5	19.0	157	3000	40
150	6	145.1	4.5	241.3	22.2	216	3000	40
200	8	197.4	5.0	298.4	22.2	270	3000	30
250	10	249.3	6.0	362.0	25.4	324	3000	30
300	12	300.1	6.0	431.8	25.4	381	3000	30

HOUSING MATERIAL

Pipe : 1. Seamless Carbon Steel ASTM A 106 Gr.B.Sch-40
2. ASTM A 312 TP 304,Sch-40
Flanges : 1. Made from IS 2062 Plates/ASTM A 105
2. ASTM A 351 Gr.CF 8
Liner : PTFE in accordance with ASTM D 1457

OPTIONS

Pipe : Jacketed Spool Pipe can be supplied on request
Flanges : DIN PN 10 / 16, BS 10, ASME 300, Mixed
Extras : Earthing Studs / Lugs, Vent Extensions
Material : Stainless Steel
Liner : HDPE / PP

NOTE

Special heavy duty PTFE Liners available for full vacuum. Details can be provided on request. Other Flange Drilling like DIN 2632 / 2633, BS 10 Table D, E or F are also available on request. Tolerance : ± 3.5 mm ( 0 to 1mtr.) and ± 5.0mm (1 to 3 mtr.) Clear ID for HDPE/PP Lined Pipes (DN/ID ) : 25/18, 40/32, 50/42,65/57, 80/67.
