factory low price High Temperature Resistant Ptfe Lined Pipe - a105 f60 carbon steel flange ansi 150 rf – TOP-METAL

Short Description:

Quick Details Size: 1/2"-60" Material: Carbon Steel Standard: ANSI Place of Origin: Hebei, China (Mainland) Model Number: Welding Neck ...

Send email to us Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

, , ,

factory low price High Temperature Resistant Ptfe Lined Pipe - a105 f60 carbon steel flange ansi 150 rf – TOP-METAL Detail:

Quick Details

Size: 1/2"-60"
Material: Carbon Steel
Standard: ANSI
Place of Origin: Hebei, China (Mainland)
Model Number: Welding Neck
Brand Name: TM
Standard or Nonstandard: Standard
item: a105 f60 carbon steel flange ansi 150 rf
Type: Welding neck flange(WN)
Surface: Rust-preventative oil, Black Painted, Yellow paint.
Pressure: 150lb,300lb,600lb,900lb,1500lb
material: carbon steel
standard: ANSI B16.5 ASME B16.47 SERIES A(MSS SP44)
Processing: Forging
Heat Treatment: Normalizing, Annealing, Quenching+Tempering
Packing: Poly-wooden case or Pallet
Payment: L/C ,T/T,Western Union

Packaging & Delivery

Packaging Details	a105 f60 carbon steel flange ansi 150 rf: In ply-wooden case or pallet with PE film.
Delivery Time	25-30 days for 1×20' container

a105 f60 carbon steel flange ansi 150 rf

Product Description

Type	Welding Neck (WN)
Standard	ANSI B16.5 ASME B16.47 SERIES A(MSS SP44) ASME B16.47 SERIES B(API605)
Pressure	ANSI B16.5: Class 150, 300, 600, 900, 1200 1500 2500 ASME B16.47 SERIES A(MSS SP44): Class 150, 300, 600, 900 ASME B16.47 SERIES B(API605): Class 75, 150, 300, 600, 900
Wall thickness	STD, SCH40, XS,SCH80,SCH120,SCH160,XXS
Size	ANSI B16.5 1/2”-24” ASME B16.47 SERIES A(MSS SP44): 26”—60” ASME B16.47 SERIES B(API605): 26”—60”
Material	Carbon steel : ASTM A105,ASTM 694 F52, ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20#
Material	Stainless steel: ASTM A182 F304/304L F316/316L
Processing	Forging
Surface	Rust-preventative oil, Black Painted, Yellow paint.

Prouduct Pictures

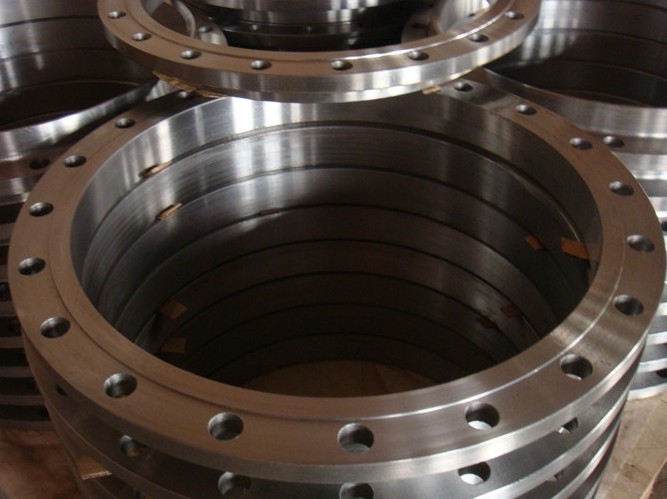

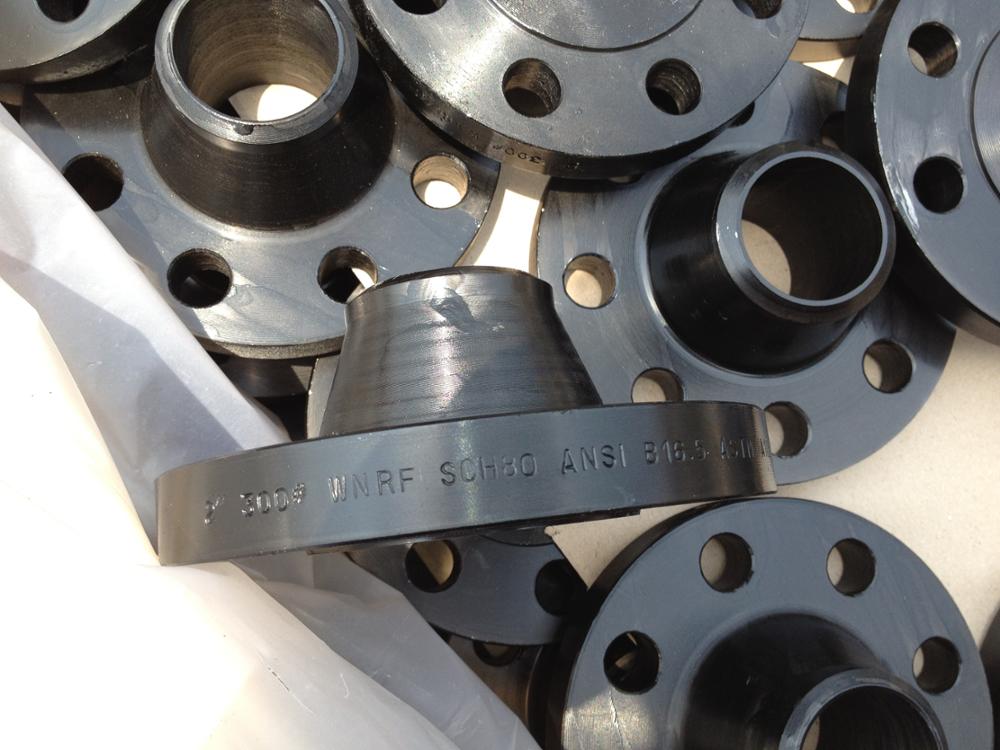

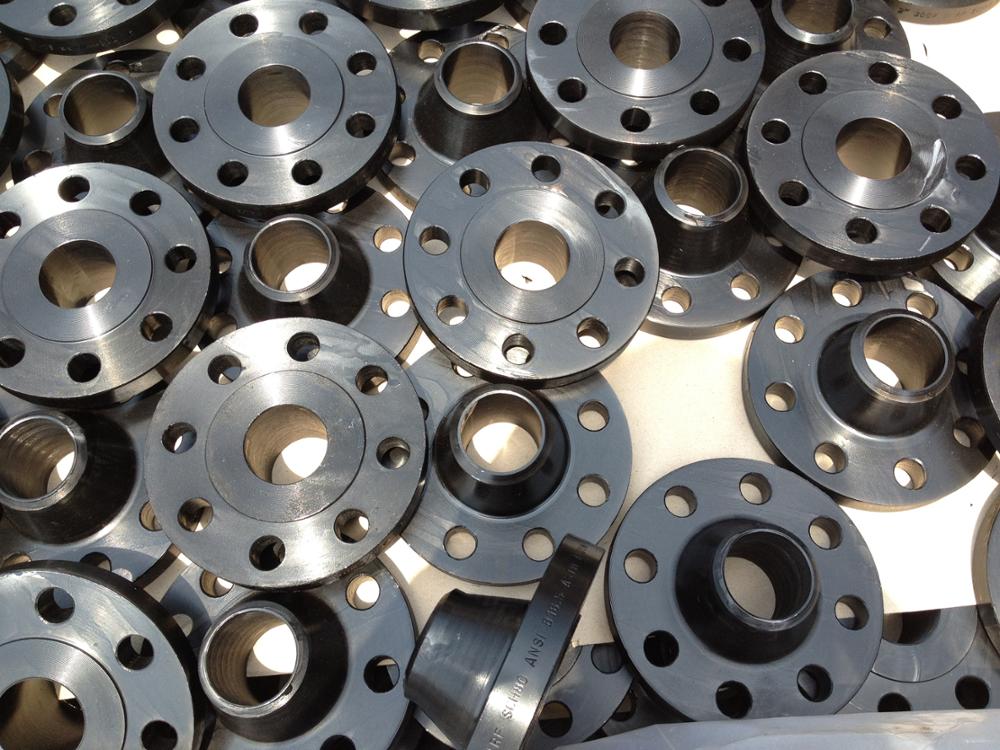

Product detail pictures:

factory low price High Temperature Resistant Ptfe Lined Pipe - a105 f60 carbon steel flange ansi 150 rf – TOP-METAL, The product will supply to all over the world, such as: , , ,
