Quick Details

• Size: DN15-DN1600
• Material: carbon steel or stainless steel
• Standard: UNI
• Place of Origin: Hebei, China (Mainland)
• Model Number: PLATE FLANGE
• Brand Name: TM
• Standard or Nonstandard: Standard

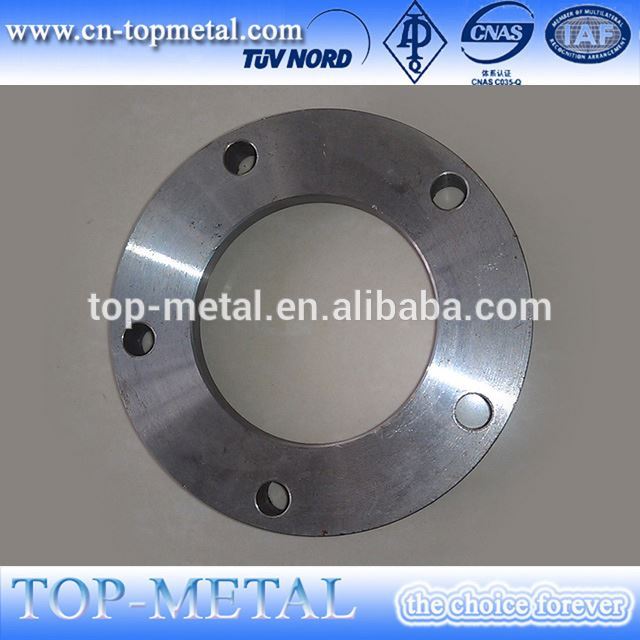

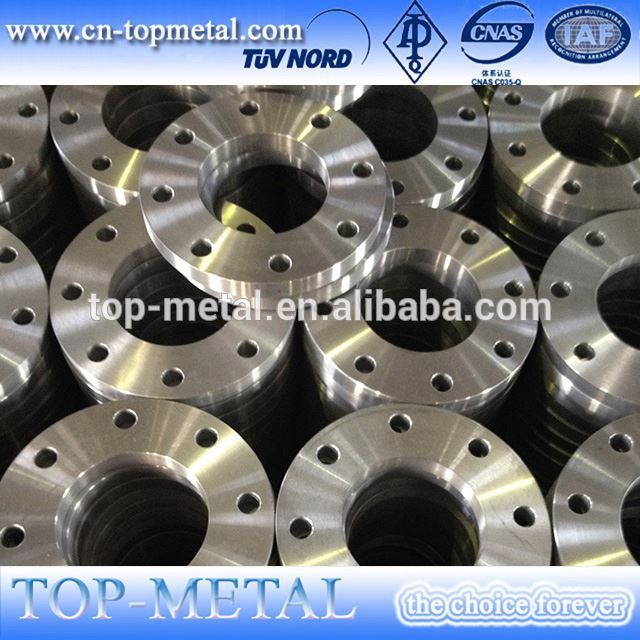

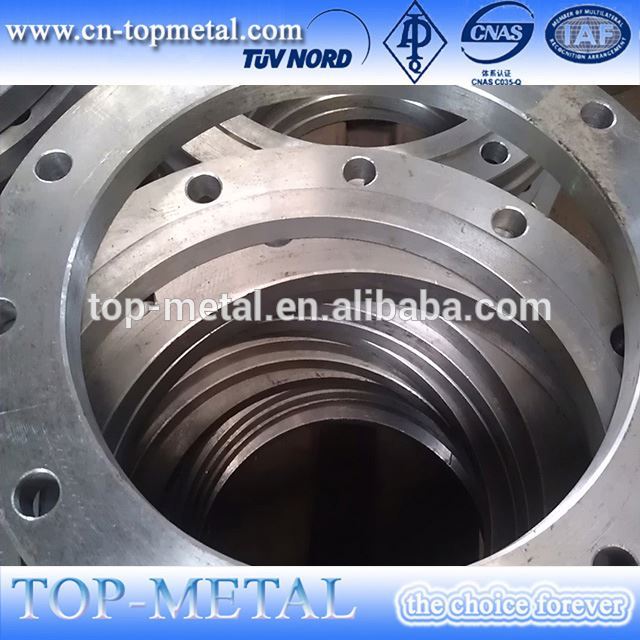

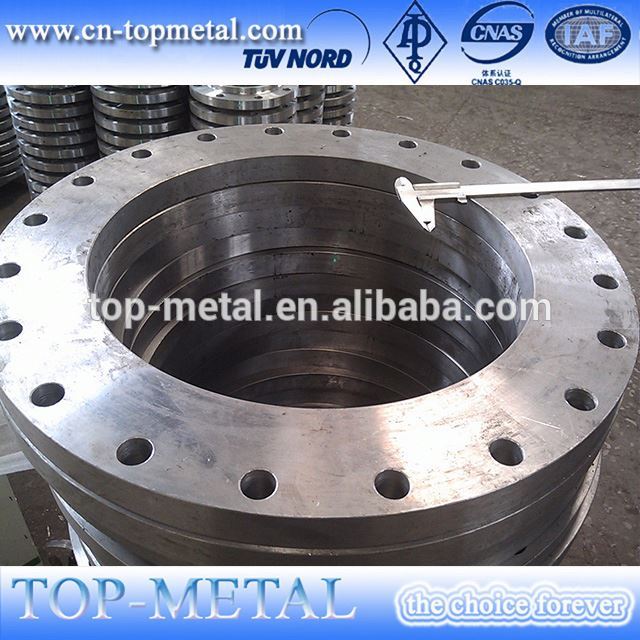

• item: large diameter hot dip galvanized uni blind flange
• Surface: Anti-rust Oil
• Flange facing: RF
• Technics: Forged

Packaging & Delivery

 Pressure:

PN6, PN10, PN16, PN25, PN40, PN64, PN100

PN6(UNI2276-67 UNI6088-67 UNI2280-67 UNI2253-67 UNI6091-67)

PN10(UNI2277-67 UNI6089-67 UNI2281-67 UNI2254-67 UNI6092-67)

PN16(UNI2278-67 UNI6090-67 UNI2282-67 UNI6093-67)

PN25(UNI6083-67 UNI2299-67 UNI2283-67 UNI6094-67)

PN40(UNI6084-67 UNI2300-67 UNI2284-67 UNI6095-67)

PN64(UNI2285-67 UNI6096-67*)

PN100(UNI2286-67 UNI6097-67*)

Size: DN10 - DN2000

Type: FF, LJ, WN, TN-RF(THREAD NECK), BL

Material: Rst37.2, Stainless steel 304/304L/316/316L

Processing technic: Forging or Casting.

Packing: Poly wooden case or Pallet

Surface treatment: Rust-preventative oil, Painted

Directions for the designation		D1		a	b	d	f	Number of holes	Threading of the screws	weight
Rated Diameter	External diameter of the pipe	Nominal	Tolerance							Kg
15	20	20.5	+0.5	65	12	95	14	4	M12	0.67
	21.3	22								0.66
20	25	25.5		75	14	105	14		M12	0.83
	26.9	27.5								0.82
25	30	30.5		85	14	115	14	4	M12	1.03
	33.7	34								1.01
32	38	38.5		100	16	140	18	4	M16	1.66
	42.4	43								1.63
40	44.5	45		110	16	150	18	44	M16	1.89
	48.3	49								1.85
50	57	58		125	18	165	18	4	M16	2.51
	60.3	61.5								2.46
65	76.1	77		145	18	185	18	4	M16	3.00
80	88.9	90		160	20	200	18	8**	M16	3.61
100	108	109	+1.0	180	22	220	18	8	M16	4.60
	114.3	115.5								4.40
125	133	134.5		210	24	250	18	8	M16	6.19
	139.7	141								5.92
150	159	160.5		240	24	285	22	8	M20	7.63
	168.3	170								7.17
175	193.7	195.5		270	26	<span style="font-size: 14px; Product detail pictures: Related Product Guide: Doctor says ‘nipple play’ is all one in three women need to ORGASM | Non-Standard Steel Part Understanding Steel Pipes Cheapest Price Line Pipe Api 5l Erw Seemless Lsaw Ssaw - large diameter hot dip galvanized uni blind flange – TOP-METAL, The product will supply to all over the world, such as: , , , 400mm Diameter Pipe Api Steel Line Pipe Dn2400mm Frp Pipe Filament Winding Pipe Ptfe Pipe Hose Extrusion Line Steel Flange By from - By from - RELATED PRODUCTS  WhatsApp Online Chat !
