Cheap PriceList for Process Part With Drawing - ansi b16.5 dn200 pn10 class 300 weld neck flange – TOP-METAL

Short Description:

Quick Details Size: 1/2"-60" Material: Stainless Steel Standard: ANSI Place of Origin: Hebei, China (Mainland) Model Number: Welding Neck ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

, , ,

Cheap PriceList for Process Part With Drawing - ansi b16.5 dn200 pn10 class 300 weld neck flange – TOP-METAL Detail:

Quick Details

Size: 1/2"-60"
Material: Stainless Steel
Standard: ANSI
Place of Origin: Hebei, China (Mainland)
Model Number: Welding Neck
Brand Name: TM
Standard or Nonstandard: Standard
item: ansi b16.5 dn200 pn10 class 300 weld neck flange
Type: Welding neck flange(WN)
Surface: Natual and brightness
Pressure: 150lb,300lb,600lb,900lb,1500lb
material: stainless steel
standard: ANSI
Processing: Forging
Heat Treatment: Normalizing, Annealing, Quenching+Tempering
Packing: Poly-wooden case or Pallet
Payment: L/C ,T/T,Western Union

Packaging & Delivery

Packaging Details	ansi b16.5 dn200 pn10 class 300 weld neck flange: In ply-wooden case or pallet with PE film.
Delivery Time	25-30 days for 1×20' container

ansi b16.5 dn200 pn10 class 300 weld neck flange

Product Description

Type	Welding Neck (WN)
Standard	ANSI B16.5 ASME B16.47 SERIES A(MSS SP44) ASME B16.47 SERIES B(API605)
Pressure	ANSI B16.5: Class 150, 300, 600, 900, 1200 1500 2500 ASME B16.47 SERIES A(MSS SP44): Class 150, 300, 600, 900 ASME B16.47 SERIES B(API605): Class 75, 150, 300, 600, 900
Wall thickness	STD, SCH40, XS,SCH80,SCH120,SCH160,XXS
Size	ANSI B16.5 1/2”-24” ASME B16.47 SERIES A(MSS SP44): 26”—60” ASME B16.47 SERIES B(API605): 26”—60”
Material	Carbon steel : ASTM A105,ASTM 694 F52, ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20#
Material	Stainless steel: ASTM A182 F304/304L F316/316L
Processing	Forging
Surface	Rust-preventative oil, Black Painted, Yellow paint.

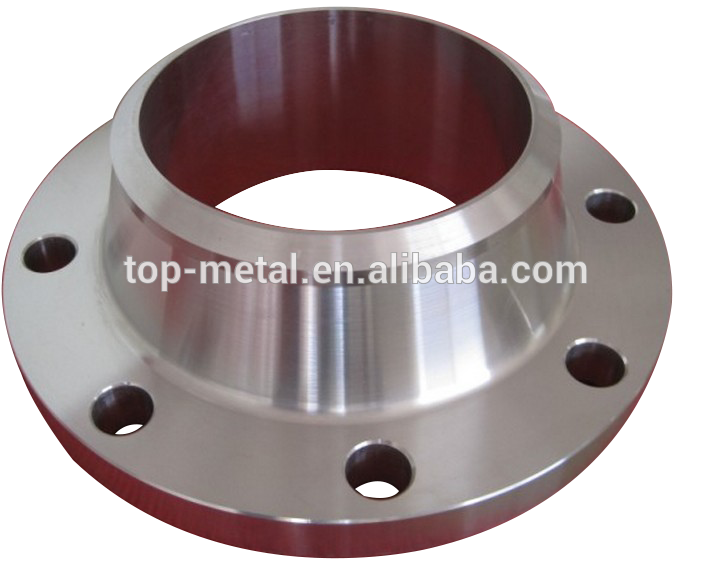

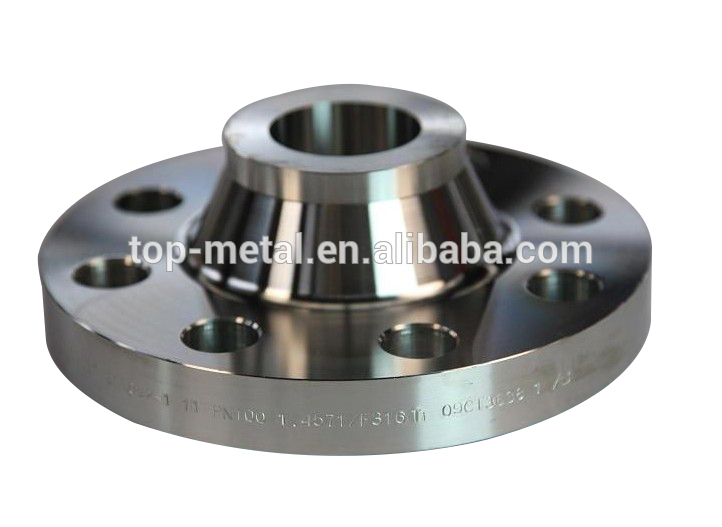

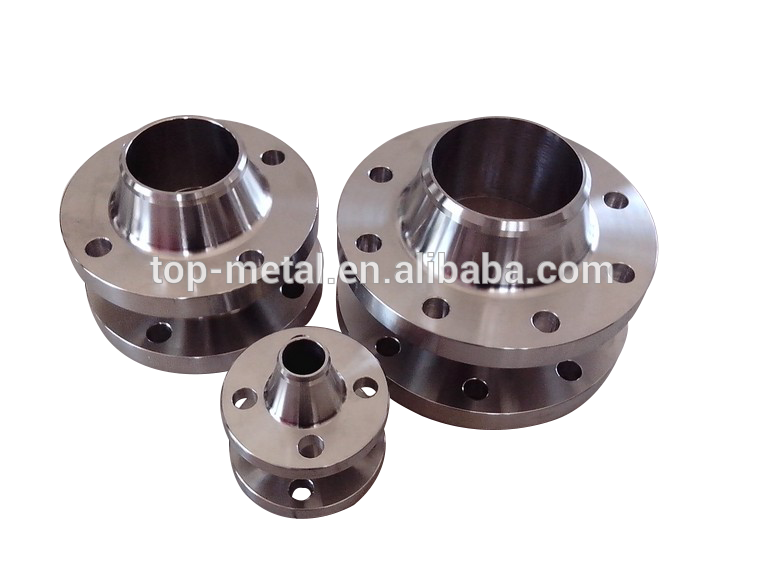

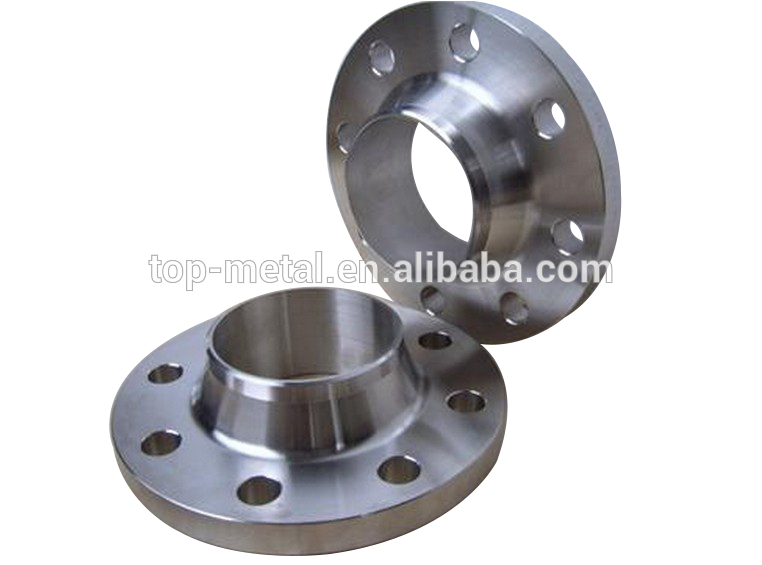

Prouduct Pictures

Other types ANSI flanges

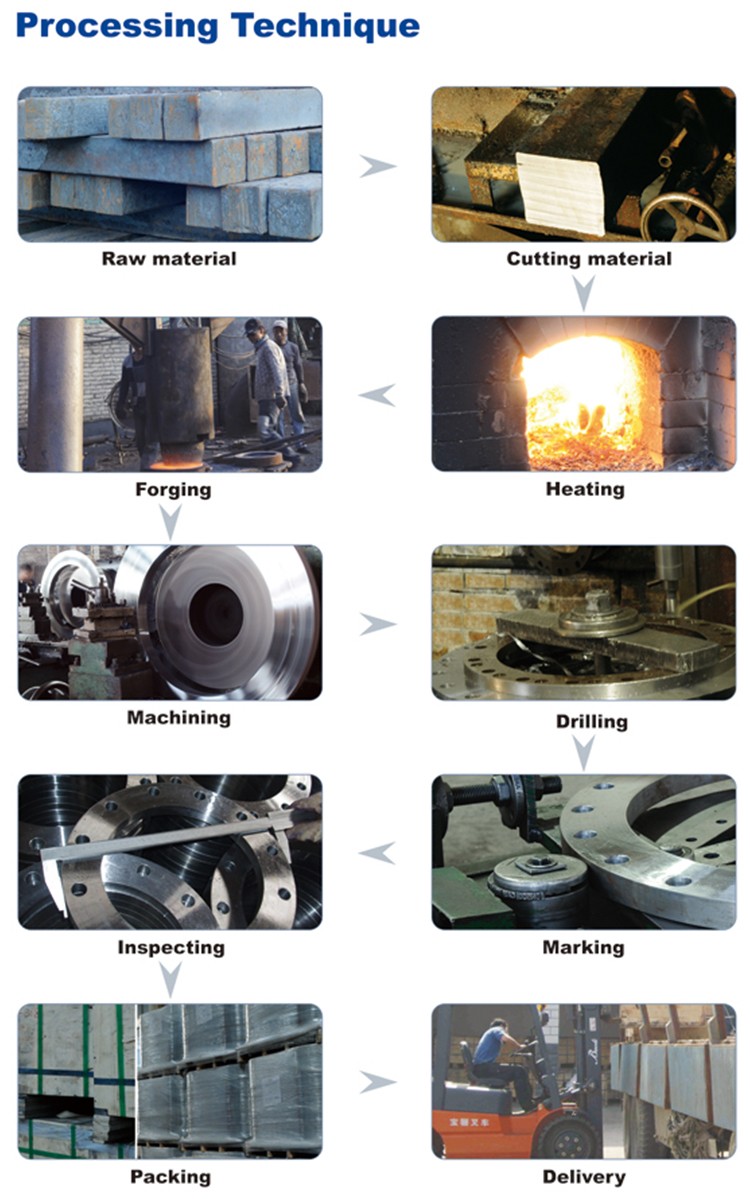

Processing

Business Scope

We supply and export various kinds of flanges, steel pipe(especially High grade pipeline steel ) ,butt-welding pipe fittings e.g. elbow, tee, reducer, cap. forged steel 3000lb 6000lb 9000lb pipe fittings, pipe couplings / nipples, , stainless steel fittings, customized steel parts etc. with 15years’ rich experience and advanced processing equipment.

1) Satisfied quality Buy cargo exactly you want.

2) Perfect service To ensure every order to go smoothly.

3) Workable prices Make your every cent to have its value.

4) Great cooperation Work with TOP-METAL will be a choice forever.

FAQ

(1)Q: Are you a trader or a factory?

A: We are both. As a trader, we have our own flange and fitting factory.

We could provide the original MTC for our client’s needs.

(2)Q: How many is your MOQ? What’s your payment term?

A: Generally speaking, we don’t have MOQ. Our price depends on the specific quantity. (The larger the quantity is, the better price will be.) Our common payment term is TT or L/C at sight, we could also discuss itaccordingly.

(3)Q: what’s your largest size of flange and fitting? How long is the production cycle?

A: The largest flange we could produce is OD2600mm and the largest fitting is OD820mm seamless. In general, we spend 20-25 days in a 20-ton order. If necessary, we could make it shorter.

(4)Q: Could you provide samples?

A: Sure. We could send you free samples, while the freight will be paid by the clients. Any needs, contact us freely.

(5)Q: What kind of certificates do you have?

A: We have ISO, TUV, API,BV etc.

Click here to our home page~~~~

Product detail pictures:

Cheap PriceList for Process Part With Drawing - ansi b16.5 dn200 pn10 class 300 weld neck flange – TOP-METAL, The product will supply to all over the world, such as: , , ,
