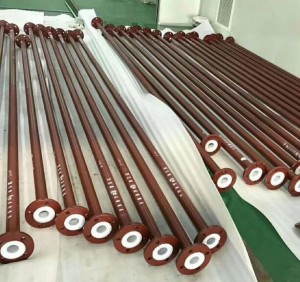

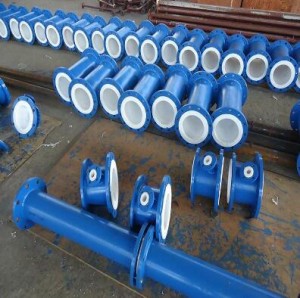

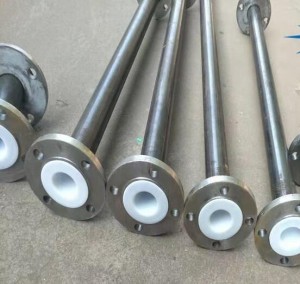

Pipe spools of sizes up to DN-300 and a maximum length of 3000mm. These spools are seamless pipe sections to which the plastic liner is thermally locked from inside & flared at ends conforming to ASTM A 106 sch-40 conforming to ASTM F 1545 suitably provided with vent holes to prevent liner failure against different temperature and pressure and permeation conditions. These lined spool pipes can be supplied with lose or fixed flange design to any drilling specification upto DN – 300 sizes. As a solution to customer’s applications Jacketed Lined Pipes can also be made available.
| NOMINAL BORE NB | INTERNAL DIA (D) | PTFE LINER THICKNESS (T) | FLANGE PCD | FLANGEHOLE DIA | RAISED FACE DIA(R/F) | MAXI. LENGTH | PIPE SCHEDULE | ||
| (MM) | (INCHES) | (+1 MM) | (MM) | (MM) | (MM) | (MM) | (MM) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 | |
| 40 | 1.5 | 33.8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 | |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 | |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 | |
| 100 | 4 | 95.2 | 3.8 | 190.5 | 19.0 | 157 | 3000 | 40 | |
| 150 | 6 | 145.1 | 4.5 | 241.3 | 22.2 | 216 | 3000 | 40 | |
| 200 | 8 | 197.4 | 5.0 | 298.4 | 22.2 | 270 | 3000 | 30 | |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 | |
| 300 | 12 | 300.1 | 6.0 | 431.8 | 25.4 | 381 | 3000 | 30 | |
HOUSING MATERIAL
- Pipe : 1. Seamless Carbon Steel ASTM A 106 Gr.B.Sch-40
2. ASTM A 312 TP 304,Sch-40 - Flanges : 1. Made from IS 2062 Plates/ASTM A 105
2. ASTM A 351 Gr.CF 8 - Liner : PTFE in accordance with ASTM D 1457
OPTIONS
- Pipe : Jacketed Spool Pipe can be supplied on request
- Flanges : DIN PN 10 / 16, BS 10, ASME 300, Mixed
- Extras : Earthing Studs / Lugs, Vent Extensions
- Material : Stainless Steel
- Liner : HDPE / PP
NOTE
Special heavy duty PTFE Liners available for full vacuum. Details can be provided on request. Other Flange Drilling like DIN 2632 / 2633, BS 10 Table D, E or F are also available on request. Tolerance : ± 3.5 mm ( 0 to 1mtr.) and ± 5.0mm (1 to 3 mtr.) Clear ID for HDPE/PP Lined Pipes (DN/ID ) : 25/18, 40/32, 50/42,65/57, 80/67.
TEST & INSPECTION DATA
Resins are conforming to the requirements of ASTM F 1545-97(2003)
- Hydraulic Test : 20 Kg / Cm2 After Lining
- Spark Test : 15 KV D.C After Lining
