Quick Details
- Size: 1/2"-60"
- Material: Carbon Steel
- Standard: ANSI
- Place of Origin: Hebei, China (Mainland)
- Model Number: Welding Neck
- Brand Name: TM
- Standard or Nonstandard: Standard
- item: ansib16.47 standard weld neck flange
- Type: Welding neck flange(WN)
- Surface: Rust-preventative oil, Black Painted, Yellow paint.
- Pressure: 150lb,300lb,600lb,900lb,1500lb
- material: carbon steel
- standard: ANSI B16.5 ASME B16.47 SERIES A(MSS SP44)
- Processing: Forging
- Heat Treatment: Normalizing, Annealing, Quenching+Tempering
- Packing: Poly-wooden case or Pallet
- Payment: L/C ,T/T,Western Union
Packaging & Delivery
Packaging Details |
ansib16.47 standard weld neck flange: In ply-wooden case or pallet with PE film. |
Delivery Time |
25-30 days for 1×20' container |
ansib16.47 standard weld neck flange

Product Description


Type
|
Welding Neck (WN)
|
Standard
|
ANSI B16.5
ASME B16.47 SERIES A(MSS SP44)
ASME B16.47 SERIES B(API605)
|
Pressure
|
ANSI B16.5: Class 150, 300, 600, 900, 1200 1500 2500
ASME B16.47 SERIES A(MSS SP44): Class 150, 300, 600, 900
ASME B16.47 SERIES B(API605): Class 75, 150, 300, 600, 900
|
Wall thickness
|
STD, SCH40, XS,SCH80,SCH120,SCH160,XXS
|
Size
|
ANSI B16.5 1/2”-24”
ASME B16.47 SERIES A(MSS SP44): 26”—60”
ASME B16.47 SERIES B(API605): 26”—60”
|
Material
|
Carbon steel : ASTM A105,ASTM 694 F52, ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20#
|
Stainless steel: ASTM A182 F304/304L F316/316L
|
Processing
|
Forging
|
Surface
|
Rust-preventative oil, Black Painted, Yellow paint.
|

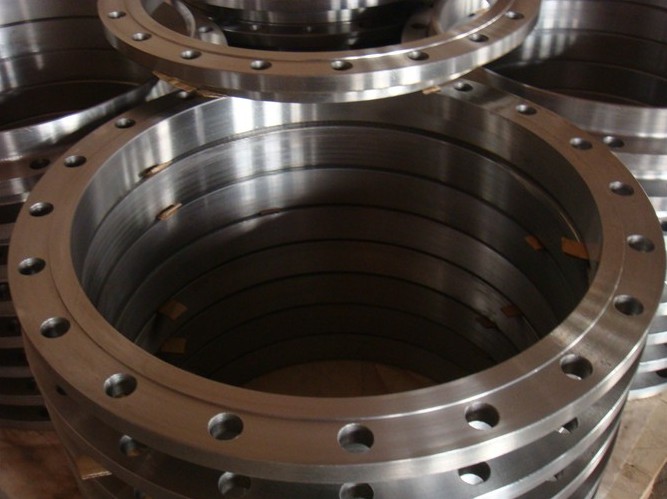

Prouduct Pictures
