Quick Details
- Size: 1/2"-60"
- Material: Stainless Steel
- Standard: ANSI
- Place of Origin: Hebei, China (Mainland)
- Model Number: Welding Neck
- Brand Name: TM
- Standard or Nonstandard: Standard
- item: ansi b16.5 150/300/600 4 inch class weld neck flange
- Type: Welding neck flange(WN)
- Surface: Natual and brightness
- Pressure: 150lb,300lb,600lb,900lb,1500lb
- material: stainless steel
- standard: ANSI
- Processing: Forging
- Heat Treatment: Normalizing, Annealing, Quenching+Tempering
- Packing: Poly-wooden case or Pallet
- Payment: L/C ,T/T,Western Union
Packaging & Delivery
| Packaging Details | ansi b16.5 150/300/600 4 inch class weld neck flange: In ply-wooden case or pallet with PE film. |
|---|---|
| Delivery Time | 25-30 days for 1×20' container |
ansi b16.5 150/300/600 4 inch class weld neck flange
Product Description
|
Type |
Welding Neck (WN) |
|
Standard |
ANSI B16.5 ASME B16.47 SERIES A(MSS SP44) ASME B16.47 SERIES B(API605) |
|
Pressure |
ANSI B16.5: Class 150, 300, 600, 900, 1200 1500 2500 ASME B16.47 SERIES A(MSS SP44): Class 150, 300, 600, 900 ASME B16.47 SERIES B(API605): Class 75, 150, 300, 600, 900 |
|
Wall thickness |
STD, SCH40, XS,SCH80,SCH120,SCH160,XXS |
|
Size |
ANSI B16.5 1/2”-24” ASME B16.47 SERIES A(MSS SP44): 26”—60” ASME B16.47 SERIES B(API605): 26”—60” |
|
Material |
Carbon steel : ASTM A105,ASTM 694 F52, ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20# |
|
Stainless steel: ASTM A182 F304/304L F316/316L |
|
|
Processing |
Forging |
|
Surface |
Rust-preventative oil, Black Painted, Yellow paint. |

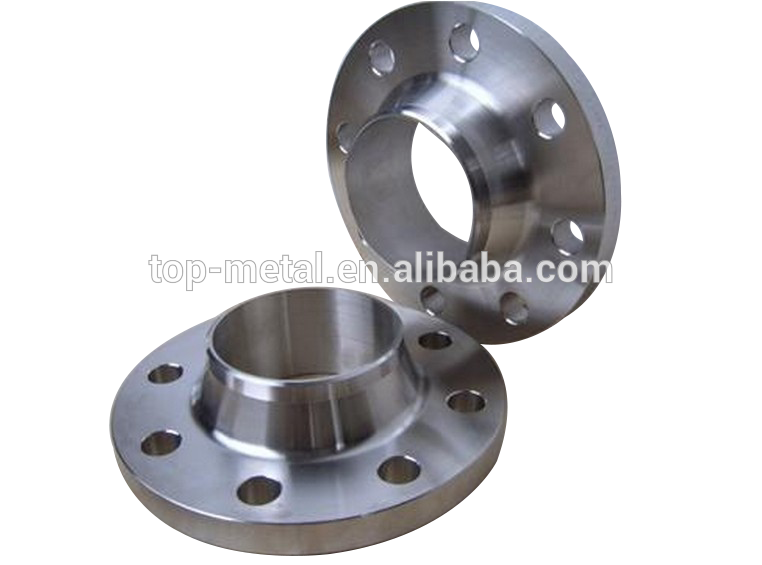

Prouduct Pictures

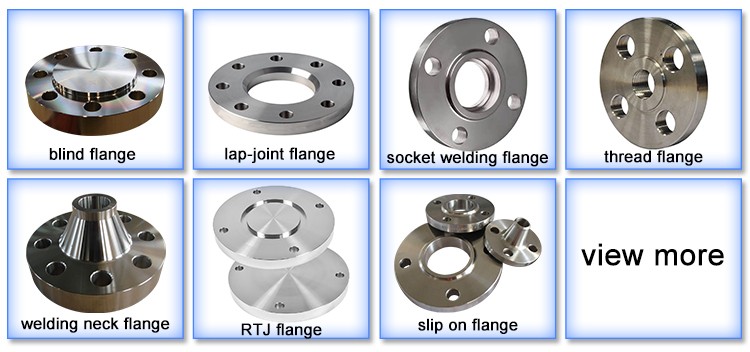

Other types ANSI flanges

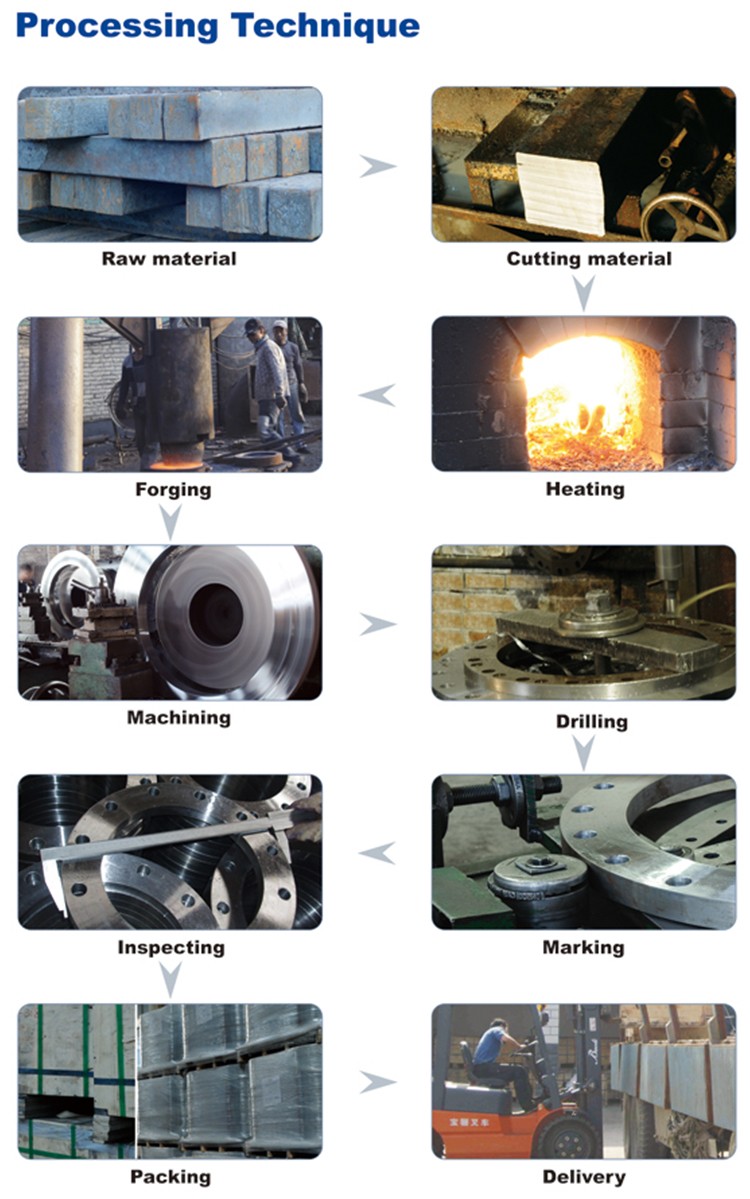

Processing
Business Scope
We supply and export various kinds of flanges, steel pipe(especially High grade pipeline steel ) ,butt-welding pipe fittings e.g. elbow, tee, reducer, cap. forged steel 3000lb 6000lb 9000lb pipe fittings, pipe couplings / nipples, , stainless steel fittings, customized steel parts etc. with 15years’ rich experience and advanced processing equipment.
1) Satisfied quality Buy cargo exactly you want.
2) Perfect service To ensure every order to go smoothly.
3) Workable prices Make your every cent to have its value.
4) Great cooperation Work with TOP-METAL will be a choice forever.
FAQ
(1)Q: Are you a trader or a factory?
A: We are both. As a trader, we have our own flange and fitting factory.
We could provide the original MTC for our client’s needs.
(2)Q: How many is your MOQ? What’s your payment term?
A: Generally speaking, we don’t have MOQ. Our price depends on the specific quantity. (The larger the quantity is, the better price will be.) Our common payment term is TT or L/C at sight, we could also discuss itaccordingly.
(3)Q: what’s your largest size of flange and fitting? How long is the production cycle?
A: The largest flange we could produce is OD2600mm and the largest fitting is OD820mm seamless. In general, we spend 20-25 days in a 20-ton order. If necessary, we could make it shorter.
(4)Q: Could you provide samples?
A: Sure. We could send you free samples, while the freight will be paid by the clients. Any needs, contact us freely.
(5)Q: What kind of certificates do you have?
A: We have ISO, TUV, API,BV etc.
