Quick Details
- Place of Origin: Hebei, China (Mainland)
- Brand Name: TOPMETAL
- Model Number: HDPE Pipe
- Material: PE80 PE100 PE4710
- Specification: 20mm-1600mm
- Length: 5.8m or 11.8m, 3-18m
- Thickness: SDR11-SDR26 , customized thickness is accpetable
- Standard: Standard
- item: 160mm hdpe dredging pipe price
- End: bevel with plastic cap
- certificates: API5L ISO 9001:2008 TUV SGS BV etc
- outside diameter: 1/2''–48'' 20mm-1600mm
Packaging & Delivery
Packaging Details |
In Bundle or in bulk. |
Delivery Time |
30 days |

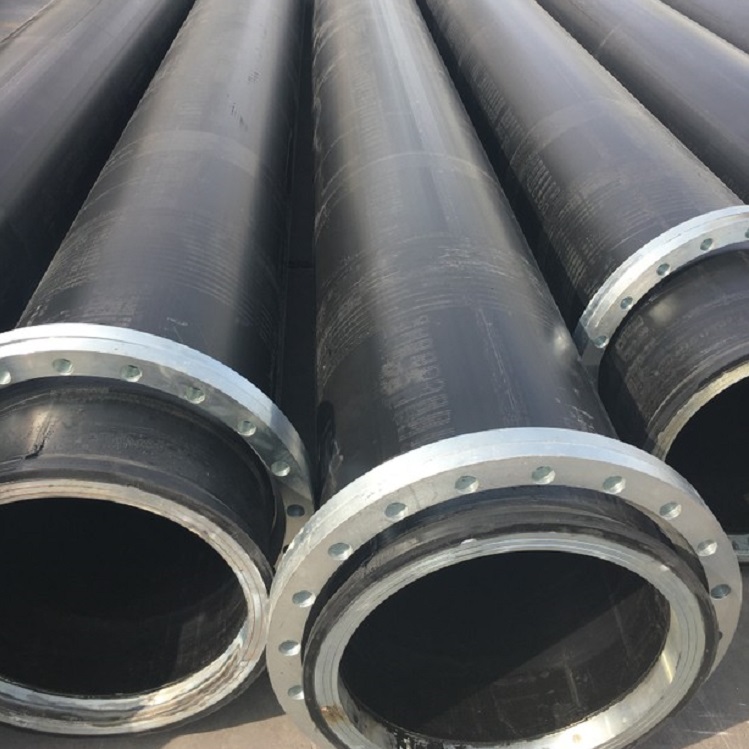

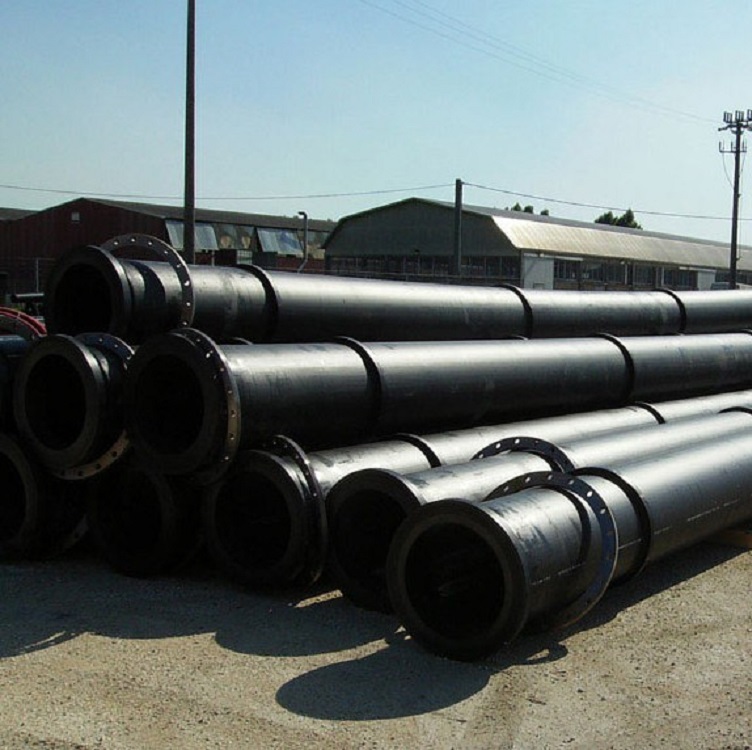

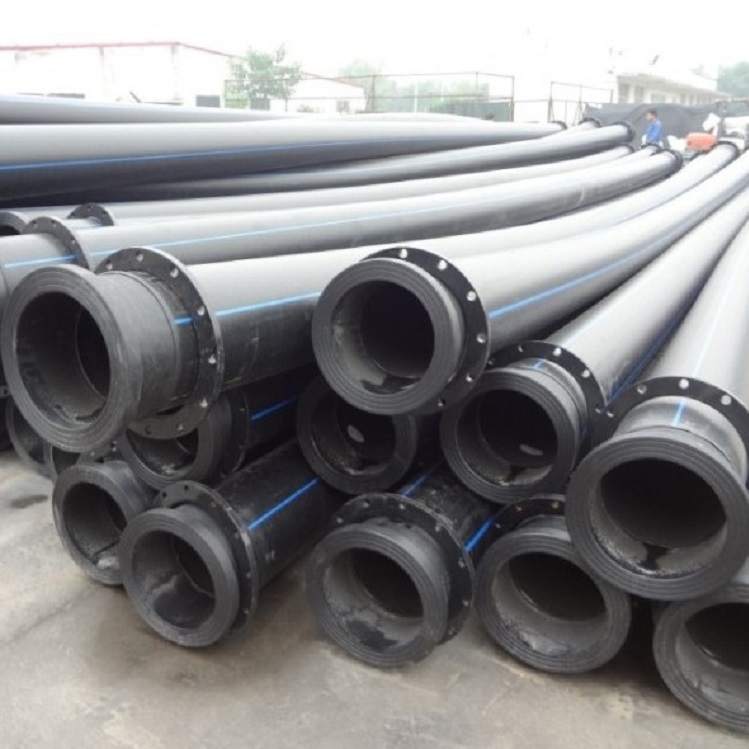

160mm hdpe dredging pipe price


Material : PE80, PE100 PE4710
Length : 5.8 m,11.8m or on customer requirement
Sizes: 20mm to 1600 mm
Pressure Rating: PN 0.6Mpa ,PN 0.8Mpa ,PN 1.0Mpa,PN 1.25Mpa, PN1.6Mpa
Colors: black other colors on request
Connection: socket fusion joint, heat fusion joint or transition joint
Standard: ISO9001:2008 ISO14001:2004
Nominal Diameter(mm)
|
SDR26
|
SDR21
|
SDR17
|
SDR13.6
|
SDR11
|
PN6
|
PN8
|
PN10
|
PN12.5
|
PN16
|
Thickness
|
Thickness
|
Thickness
|
Thickness
|
Thickness
|
20
|
2
|
2
|
2
|
2
|
2
|
25
|
2
|
2
|
2.3
|
2.3
|
2.3
|
32
|
2
|
2.3
|
2.3
|
2.3
|
3
|
40
|
2.3
|
2.3
|
2.5
|
3
|
3.7
|
50
|
2.3
|
2.5
|
3
|
3.7
|
4.6
|
63
|
2.9
|
3
|
3.7
|
4.7
|
5.8
|
75
|
3
|
3.7
|
4.5
|
5.6
|
6.8
|
90
|
3.7
|
4.3
|
5.4
|
6.7
|
8.2
|
110
|
4.2
|
5.3
|
6.6
|
8.1
|
10
|
125
|
4.8
|
6
|
7.4
|
9.2
|
11.4
|
140
|
5.4
|
6.7
|
8.3
|
10.3
|
12.7
|
160
|
6.2
|
7.7
|
9.5
|
11.8
|
14.6
|
180
|
6.9
|
8.6
|
10.7
|
13.3
|
16.4
|
200
|
7.7
|
9.6
|
11.9
|
14.7
|
18.2
|
225
|
8.6
|
10.8
|
13.4
|
16.6
|
20.5
|
250
|
9.6
|
11.9
|
14.8
|
18.4
|
22.7
|
280
|
10.7
|
13.4
|
16.6
|
20.6
|
25.4
|
315
|
12.1
|
15
|
18.7
|
23.2
|
28.6
|
355
|
13.6
|
16.9
|
21.1
|
26.1
|
32.2
|
400
|
15.3
|
19.1
|
23.7
|
29.4
|
36.3
|
450
|
17.2
|
21.5
|
26.7
|
33.1
|
40.9
|
500
|
19.1
|
23.9
|
29.7
|
36.8
|
45.4
|
560
|
21.4
|
26.7
|
33.2
|
41.2
|
50.8
|
630
|
24.1
|
30
|
37.4
|
46.3
|
57.2
|
710
|
27.2
|
33.9
|
42.1
|
52.2
|
64.5
|
800
|
30.6
|
38.1
|
47.4
|
58.8
|
72.6
|
900
|
34.4
|
42.9
|
53.3
|
66.2
|
81.7
|
1000
|
38.2
|
47.7
|
59.3
|
72.5
|
90.2
|
1200
|
45.9
|
57.2
|
67.9
|
88.2
|
-
|
1400
|
53.5
|
66.7
|
82.4
|
102.9
|
-
|
1600
|
61.2
|
76.2
|
94.1
|
117.6
|
-
|
Physical Properties
Properties
|
Typical Value
|
Specific Gravity, g/cm3(20°C)
|
0.941~0.965
|
Longitudinal Reversion, %(110°C)
|
≤3
|
Oxidation Induction Time, min(200°C)
|
≥20
|
Extension Rate at Break,%
|
≥350
|
Hydraulic Pressure Test (PE100) qualified
|
20°C
|
80°C,165h, Hoop Stress is 5.5MPa
|
80°C,1000h,Hoop Stress is 5.0MPa
|
