100% Original Factory Awwa C200 Ssaw Steel Pipe - Customized High Quality PTFE Lined Pipes Elbow and Tee , reducer – TOP-METAL Detail:

Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
TM
Model Number:
1″–24″
Product name:
ptfe lined fittings
Thickness:
1-10mm
Length:
as customized
Connect:
flange
Customized:
support customized according to drawing supplied
flange type:
slip on . weld neck lap joint
Connect type:
2 fixed flanges, 2 loose flanges, 1 fixed flange+1loose flange
Product Description
Product parameter:Lining Material: PFA, PTFE

Nominal diameter: DN25~DN300,1″~12″
Length: ≤6000mm (size≤DN150) ≤4000mm (size>DN150)

Temperature range: -29°C~180°C

Applicable medium:
Able to transport any concentration of acid, alkali, organic solvents, strong oxidant, toxic and volatile, flammable chemicals.

Specification Instruction:
Kaxite manufactures PTFE lined pipe and fittings by compression molding, isostatic molding, injection molding, transfer molding,
hot rotomolding, ram/paste extrusion, 3D rotational molding etc. Characters as below:

• Working temperature is high at the range of -29°C-200°C; except the molten alkali metals, element fluorine and aromatic
hydrocarbon, lined products can be used in any chemical medium.
• Vacuum resistance. In the range of -29°C-150°C, it is applicable for vacuum condition. In chemical production, the vacuum
condition occurs due to cooling, longitudinal emissions, or medium backflow.
• High-pressure resistance. Within temperature working condition, it can sustain the working pressure of 3.0 MPa.
• Resistance to penetration. Adapt the high-quality PTFE, to make it of high density and enough thickness after advanced lining
processing, make it excellent antiosmosis.
• PTFE advanced lining molding process achieved the status of syn chronous hot expansion or cold shrinkage for steel components
and fluorine plastic.
• Kaxite us adopts the standard size according to HG, GB, DIN, ANSI, and JIS etc., which improves interchangeability, to provide
convenience for installation.

Data sheet
Specific Gravity: 2.14-2.19g/cm3 as per ASTM D 792 test standard.

Tensile Rate: 20.7Mpa minimum as per ASTM D 638 test standard.

Elongation Rate: 250% minimum as per ASTM D 638 test standard.

Manufacture Standard: ASTM D 4895. Operating in vacuum condition within 150°C







Packing&Shipping
PTFE lined products must have perfect protection on the end of the products. it shoulde be covered well. then in ply wooden case or in bundles.




Company Introduction
TOP-METAL is located in China recognized as a leading supplier, manufacturer and distributor union in providing piping solutions for oil and gas company and other industry area products in domestic and abroad. Product ranges in API 5L Seamless pipe,LSAW,SSAW Steel Pipe and all kinds of Anti-corrosive pipeline and fittings e.g. 3PE coated ,PTFE lined,FRP winding, special parts can be customized as drawing supplied. Other accessories in pipeline e.g. carbon steel and stainless steel flange, butt-welding fittings,forged fittings,thread pipe nipple and socket etc. In order to supply high quality products, our 5 sets vertical machine center can process much precise parts as per drawing request, so customized parts are welcome. Recently years, we took part in a lot of project from CNPC and Sinopec in Foreign aid, we are honored in their Approved Supplier List.




Product detail pictures:

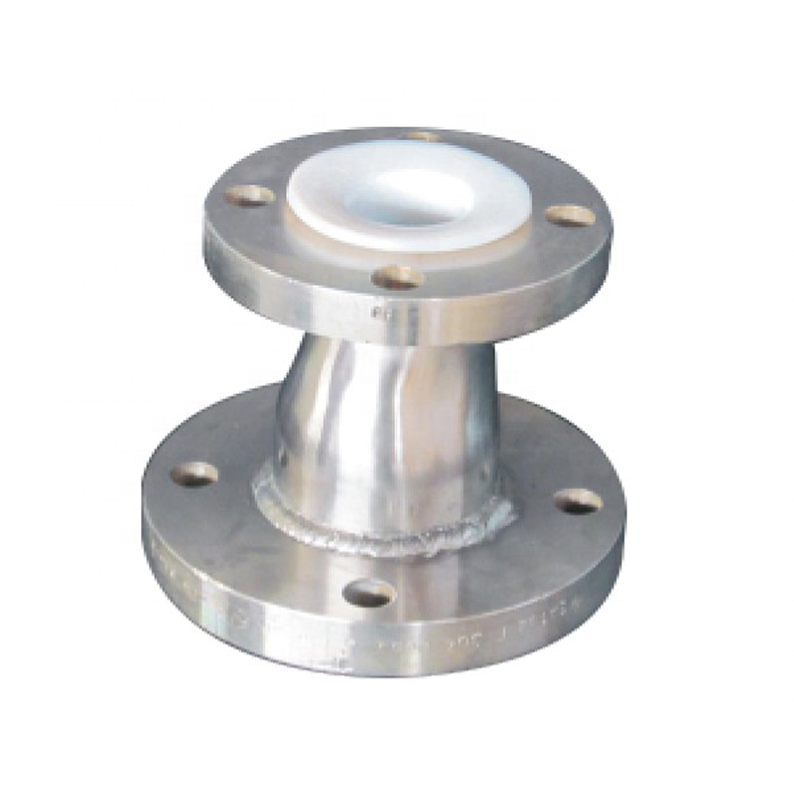

100% Original Factory Awwa C200 Ssaw Steel Pipe - Customized High Quality PTFE Lined Pipes Elbow and Tee , reducer – TOP-METAL detail pictures

100% Original Factory Awwa C200 Ssaw Steel Pipe - Customized High Quality PTFE Lined Pipes Elbow and Tee , reducer – TOP-METAL detail pictures

100% Original Factory Awwa C200 Ssaw Steel Pipe - Customized High Quality PTFE Lined Pipes Elbow and Tee , reducer – TOP-METAL detail pictures

100% Original Factory Awwa C200 Ssaw Steel Pipe - Customized High Quality PTFE Lined Pipes Elbow and Tee , reducer – TOP-METAL detail pictures
